6 Monitoring Using Web Services and JMX

Example 6-1 Sample WSDL File TargetWithWSMgmtInterface

<?xml version="1.0" encoding="UTF-8" ?>
<definitions
     name="TargetWithWSMgmtInterface"
     targetNamespace="http://tempuri.org"
     xmlns="http://schemas.xmlsoap.org/wsdl/"
     xmlns:tns="http://tempuri.org"
     xmlns:mime="http://schemas.xmlsoap.org/wsdl/mime/"
     xmlns:soap12="http://schemas.xmlsoap.org/wsdl/soap12/"
     xmlns:ns1="http://mypackage3/MyProdMgmtInterface.wsdl/types"
     xmlns:xsd="http://www.w3.org/2001/XMLSchema"
     xmlns:soap="http://schemas.xmlsoap.org/wsdl/soap/"
    >
    <types>
        <schema xmlns="http://www.w3.org/2001/XMLSchema"
 targetNamespace="http://tempuri.org" elementFormDefault="qualified"
             xmlns:tns="http://tempuri.org"
 xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/"             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:soap11-enc="http://schemas.xmlsoap.org/soap/encoding/"/>
        <schema xmlns="http://www.w3.org/2001/XMLSchema" targetNamespace="http://mypackage3/MyProdMgmtInterface.wsdl/types"
             elementFormDefault="qualified" xmlns:tns="http://mypackage3/MyProdMgmtInterface.wsdl/types"
             xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xmlns:soap11-enc="http://schemas.xmlsoap.org/soap/encoding/">
            <complexType name="ArrayOfstring">
                <complexContent>
                    <restriction base="soap11-enc:Array">
                        <attribute ref="soap11-enc:arrayType" wsdl:arrayType="string[]"/>
                    </restriction>
                </complexContent>
            </complexType>
        </schema>
    </types>
    <message name="TargetWithWSMgmtInterfaceSEI1_getNumActiveThreads"/>
    <message name="TargetWithWSMgmtInterfaceSEI1_getUserSessionID">
        <part name="user" type="xsd:string"/>
    </message>
    <message name="TargetWithWSMgmtInterfaceSEI1_getUserSessionIDResponse">
        <part name="result" type="xsd:string"/>
    </message>
    <message name="TargetWithWSMgmtInterfaceSEI1_getNumActiveThreadsResponse">
        <part name="result" type="xsd:long"/>
    </message>
    <message name="TargetWithWSMgmtInterfaceSEI1_getActiveUsers"/>
    <message name="TargetWithWSMgmtInterfaceSEI1_getActiveUsersResponse">
        <part name="result" type="ns1:ArrayOfstring"/>
    </message>
    <portType name="ManagementInterfaceWS">
        <operation name="getActiveUsers">
            <input message="tns:TargetWithWSMgmtInterfaceSEI1_getActiveUsers"/>
            <output message="tns:TargetWithWSMgmtInterfaceSEI1_getActiveUsersResponse"/>
        </operation>
        <operation name="getNumActiveThreads">
            <input message="tns:TargetWithWSMgmtInterfaceSEI1_getNumActiveThreads"/>
            <output message="tns:TargetWithWSMgmtInterfaceSEI1_getNumActiveThreadsResponse"/>
        </operation>
        <operation name="getUserSessionID" parameterOrder="user">
            <input message="tns:TargetWithWSMgmtInterfaceSEI1_getUserSessionID"/>
            <output message="tns:TargetWithWSMgmtInterfaceSEI1_getUserSessionIDResponse"/>
        </operation>
    </portType>
    <binding name="TargetWithWSMgmtInterfaceSoapHttp" type="tns:ManagementInterfaceWS">
        <soap:binding style="rpc" transport="http://schemas.xmlsoap.org/soap/http"/>
        <operation name="getActiveUsers">
            <soap:operation soapAction="http://tempuri.org:getActiveUsers"/>
            <input>
                <soap:body use="encoded" namespace="http://tempuri.org" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"
                     parts=""/>
            </input>
            <output>
                <soap:body use="encoded" namespace="http://tempuri.org" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"
                     parts="result"/>
            </output>
        </operation>
        <operation name="getNumActiveThreads">
            <soap:operation soapAction="http://tempuri.org:getNumActiveThreads"/>
            <input>
                <soap:body use="encoded" namespace="http://tempuri.org" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"
                     parts=""/>
            </input>
            <output>
                <soap:body use="encoded" namespace="http://tempuri.org" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"
                     parts="result"/>
            </output>
        </operation>
        <operation name="getUserSessionID">
            <soap:operation soapAction="http://tempuri.org:getUserSessionID"/>
            <input>
                <soap:body use="encoded" namespace="http://tempuri.org" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"
                     parts="user"/>
            </input>
            <output>
                <soap:body use="encoded" namespace="http://tempuri.org" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"
                     parts="result"/>
            </output>
        </operation>
    </binding>
    <service name="ManagementInterfaceWS">
        <port name="TargetWithWSMgmtInterfacePort" binding="tns:TargetWithWSMgmtInterfaceSoapHttp">
            <soap:address location="http://144.25.119.190:8989/WS-MyProdMgmtIntf-context-root/ManagementInterfaceWS"/>
        </port>
    </service>
</definitions>

Example 6-2 Sample Web Services Command-Line Tool Session

Example 6-3 TargetWithWSMgmtInterface Target Metadata File

<?xml version='1.0'?><!DOCTYPE TargetMetadata SYSTEM "../dtds/TargetMetadata.dtd"><TargetMetadata META_VER="1.0" TYPE="TargetWithWSMgmtInterface" CATEGORY_PROPERTIES="versionCategory">
<Display>
<Label NLSID="TargetWithWSMgmtInterface">TargetWithWSMgmtInterface</Label>
<ShortName NLSID="TargetWithWSMgmtInterface">TargetWithWSMgmtInterface</ShortName>
<Description NLSID="TargetWithWSMgmtInterface">TargetWithWSMgmtInterface</Description>
</Display>
<Metric NAME="Threads" TYPE="TABLE">
<Display>
<Label NLSID="Threads">Threads</Label>
</Display>
<TableDescriptor>
<ColumnDescriptor NAME="activeThreads" TYPE="NUMBER">
<Display>
<Label NLSID="ActiveThreads">ActiveThreads</Label>
</Display>
</ColumnDescriptor>
</TableDescriptor>
<QueryDescriptor FETCHLET_ID="OJMX">
<Property NAME="machine" SCOPE="INSTANCE">HTTPMachine</Property>
<Property NAME="port" SCOPE="INSTANCE">HTTPPort</Property>
<Property NAME="metricType" SCOPE="GLOBAL" OPTIONAL="TRUE">GWS</Property>
<Property NAME="metric" SCOPE="GLOBAL">getNumActiveThreads</Property>
<Property NAME="requestBodyElement" SCOPE="GLOBAL" OPTIONAL="TRUE">tns:getNumActiveThreads</Property>
<Property NAME="authuser" SCOPE="INSTANCE" OPTIONAL="TRUE">authUser</Property>
<Property NAME="authpwd" SCOPE="INSTANCE" OPTIONAL="TRUE">authPasswd</Property>
<Property NAME="documentType" SCOPE="GLOBAL" OPTIONAL="TRUE">rpc/encoded</Property>
<Property NAME="soapVersion" SCOPE="GLOBAL" OPTIONAL="TRUE">SOAP1.1</Property>
<Property NAME="targetNamespace" SCOPE="GLOBAL" OPTIONAL="TRUE"><![CDATA[<namespace prefix="tns" uri="http://tempuri.org" />]]></Property>
<Property NAME="columnOrder" SCOPE="GLOBAL">/tns:getNumActiveThreadsResponse/result</Property>
<Property NAME="additionalNamespaces" SCOPE="GLOBAL" OPTIONAL="TRUE"><![CDATA[<namespaces><namespace prefix="tns" uri="http://tempuri.org" /><namespace prefix="mime" uri="http://schemas.xmlsoap.org/wsdl/mime/" /><namespace prefix="soap12" uri="http://schemas.xmlsoap.org/wsdl/soap12/" /><namespace prefix="ns1" uri="http://mypackage3/MyProdMgmtInterface.wsdl/types" /><namespace prefix="xsd" uri="http://www.w3.org/2001/XMLSchema" /><namespace prefix="soap" uri="http://schemas.xmlsoap.org/wsdl/soap/" /></namespaces>]]></Property>
<Property NAME="delimiter" SCOPE="GLOBAL">|</Property>
<Property NAME="URI" SCOPE="GLOBAL">/WS-MyProdMgmtIntf-context-root/ManagementInterfaceWS</Property>
<Property NAME="soapAction" SCOPE="GLOBAL" OPTIONAL="TRUE">http://tempuri.org:getNumActiveThreads</Property>
<Property NAME="name" SCOPE="GLOBAL">getNumActiveThreads</Property>
<Property NAME="returnType" SCOPE="GLOBAL">long</Property>
<Property NAME="arguments" SCOPE="GLOBAL"><![CDATA[<arguments></arguments>]]></Property>
</QueryDescriptor>
</Metric>
<InstanceProperties>
<InstanceProperty NAME="HTTPMachine"><Display>
<Label NLSID="dms_HTTPMachine_iprop">Machine name</Label>
<ShortName NLSID="dms_HTTPMachine_iprop">Machine name</ShortName>
</Display>
</InstanceProperty>
<InstanceProperty NAME="HTTPPort"><Display>
<Label NLSID="dms_HTTPPort_iprop">Port</Label>
<ShortName NLSID="dms_HTTPPort_iprop">Port</ShortName>
</Display>
</InstanceProperty>
<InstanceProperty NAME="version" OPTIONAL="TRUE"><Display>
<Label NLSID="oc4j_version_iprop">Version of TargetWithWSMgmtInterface</Label>
<ShortName NLSID="oc4j_version_iprop">Version of TargetWithWSMgmtInterface</ShortName>
</Display>
</InstanceProperty>
<InstanceProperty NAME="authUser" OPTIONAL="TRUE"><Display>
<Label NLSID="dms_authUser_iprop">Username for basic authorization</Label>
<ShortName NLSID="dms_authUser_iprop">Username for basic authorization</ShortName>
</Display>
</InstanceProperty>
<InstanceProperty NAME="authPasswd" OPTIONAL="TRUE" CREDENTIAL="TRUE"><Display>
<Label NLSID="dms_authPasswd_iprop">Password for basic authorization</Label>
<ShortName NLSID="dms_authPasswd_iprop">Password for basic authorization</ShortName>
</Display>
</InstanceProperty>
</InstanceProperties>
</TargetMetadata>

Example 6-4 TargetWithWSMgmtInterface Default Collection File

<!DOCTYPE TargetMetadata SYSTEM "../dtds/TargetCollection.dtd"><!-- This file is generated by Collector at 2006-01-24 14:00:10 -->

<TargetCollection TYPE="TargetWithWSMgmtInterface" NAME="TargetWithWSMgmtInterface" INCLUDE_DEFAULT="TRUE">
        <CollectionItem NAME="Threads" UPLOAD="5">
                <Schedule>
                        <IntervalSchedule INTERVAL="12" TIME_UNIT="Sec"/>
                </Schedule>
        </CollectionItem>

</TargetCollection>

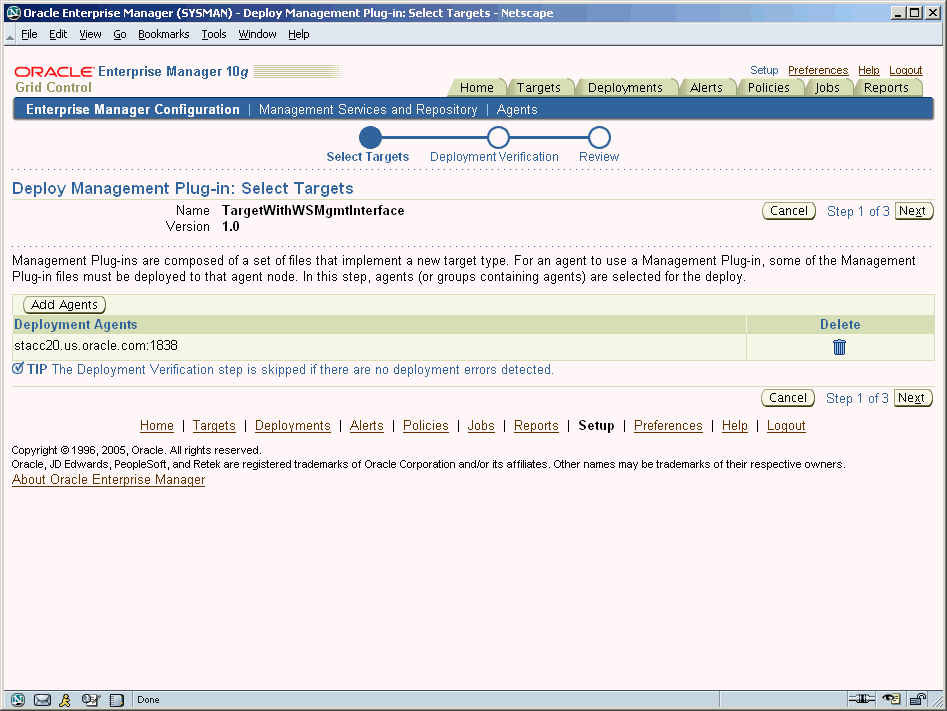

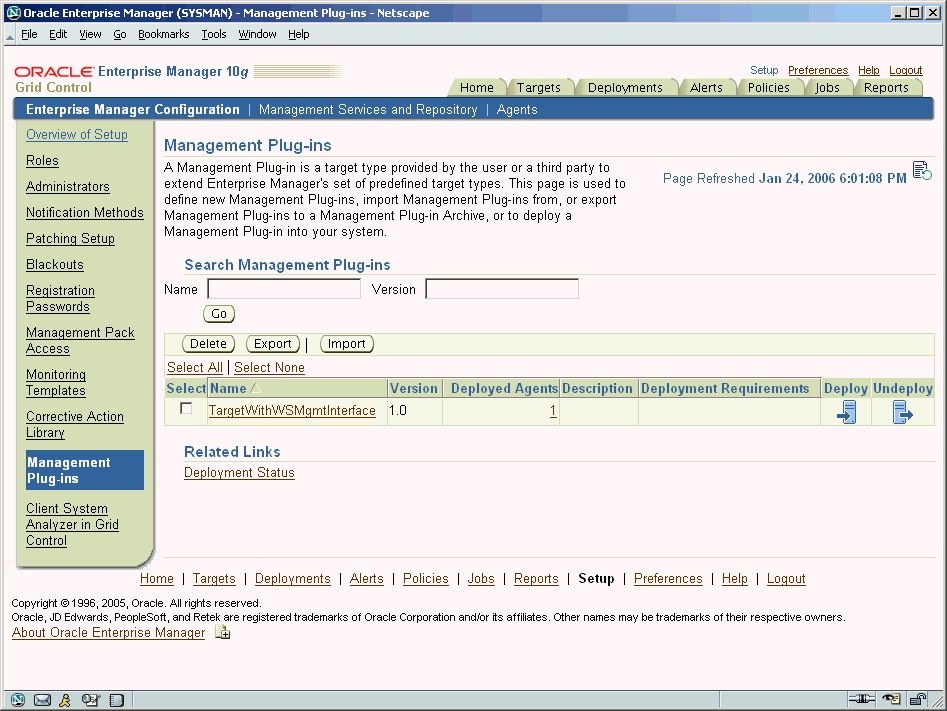

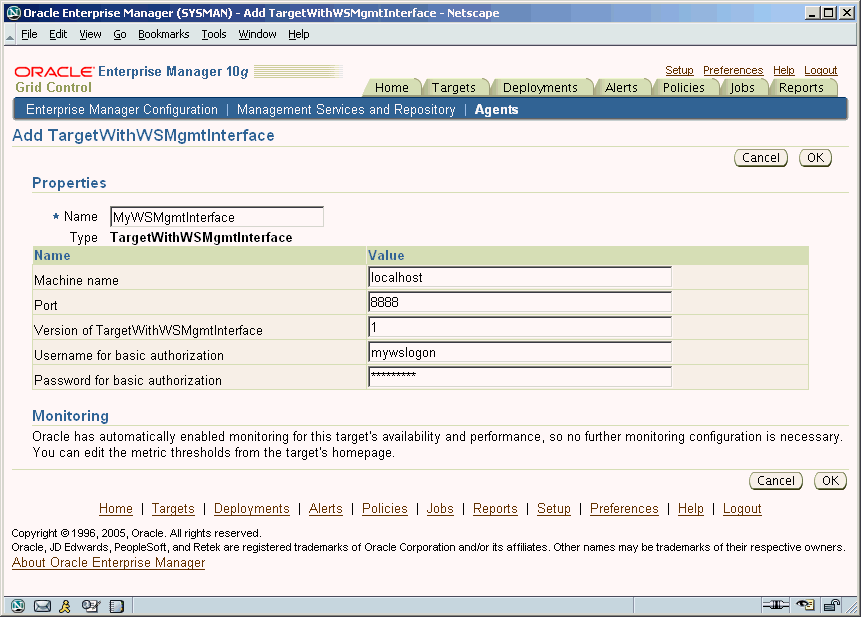

Example 6-6 Sample EMJMXCLI Session

oracleHome=/ade/sparmesw_10202_ssm/oracle
targetHome=/scratch/shiphomes/oc4j/1013_SOA_M1/
The Port is 12404

Connecting to server: localhost:12404
Connecting as user: oc4jadmin
Enter the password:

Obtained 1 MBeans matching pattern oc4j:J2EEApplication=orabpel,name="ServerBean",*.

Enter the target type for this metric: [myJ2EEApp] myBPELApp

This is the target type for the new J2EE application as it should show up within Enterprise Manager.

Enter the target version: [1.0]

Enter the target metadata file: [./metadata/myBPELApp.xml]

This is the location of the metadata file that emjmxcli generates. You must have write permission on the directories where the target metadata and default collection files are to be created.

Enter the default collections file: [./default_collection/myBPELApp.xml]
The file ./metadata/myBPELApp.xml already exists.
Do you want to overwrite the existing file, append to it, or quit <o/a/q>? [a] a
Appending to existing file: ./metadata/myBPELApp.xml.
The available targets are:
0: Identifies a deployed stateless session bean
        (oc4j:EJBModule="ejb_ob_engine",J2EEApplication=orabpel,J2EEServer=standalone,j2eeType=StatelessSessionBean,name="ServerBean")

Enter the index of target/MBean you wish to monitor or press <Ctrl-C> to quit: 0

If multiple MBeans matched the -m <MBean pattern> specified when emjmxcli was invoked, all MBean ObjectNames matching the pattern are listed during this part of the command-line session, at which point you can select one among the list. You can choose another MBean from the above list after creating metrics for the first one without exiting this emjmxcli session.

If you want to append metrics from another MBean that does not match the above -m pattern, you must exit and start another emjmxcli session with the MBean ObjectName/Pattern of the latter MBean, and create metrics from this MBean which will be appended to the original target metadata and default collection files from the previous emjmxcli session. Using this method, you can append metrics created from multiple emjmxcli sessions to the same target metadata and default collection files, if necessary.

Following metric source types are available for selected target(s):
        0: JMX Attributes
        1: JMX Operations
        2: J2EE Statistics
Enter the index of your choice or press <Ctrl-C> to quit: 2

Statistics are:
        0: CreateCount
        1: ejbCreate()ClientActive
        2: ejbCreate()ClientTime
        3: ejbRemove()ClientActive
        4: ejbRemove()ClientTime
        5: MethodReadyCount
        6: RemoveCount
        7: setSessionContext(javax.ejb.SessionContext)ClientActive
        8: setSessionContext(javax.ejb.SessionContext)ClientTime
Select one or more items as comma-separated indices: 0,6

JavaBean is : CreateCount
        0: count
        1: description
        2: lastSampleTime
        3: name
        4: startTime
        5: unit

This indicates that the Statistic call CreateCount is not a simple data type, but has a JavaBean pattern with the above listed properties, of which some may interest you.

Select one or more items as comma-separated indices: 0
JavaBean is : RemoveCount
        0: count
        1: description
        2: lastSampleTime
        3: name
        4: startTime
        5: unit
Select one or more items as comma-separated indices: 0
Number of possible columns in the resultant metric are 2.

Enter the name for this metric column at index=0 : [countOfCreateCount] createCount

You can specify any meaningful name here. If you do not specify a name, the JMX command-line tool generates a default name that may not be appropriate in all cases.

Is this column a KEY Column <y/n>? [n]

In situations where multiple rows can be returned, as might be the case when the Attribute or return value of the Operation is TabularData, you need to specify one or more of your chosen metrics as "Key" columns.

Is this column for SUMMARY_UI <y/n>? [n]
Enter the label for column: [createCount]
Enter the NLSID for column: [createCount]
Enter the UNIT for column "createCount": [count]
Do you want to create a threshold for this column <y/n>? [n] y
Creating threshold!!
Following operators are available for creating thresholds:
 0: GT
 1: EQ
 2: LT
 3: LE
 4: GE
 5: CONTAINS
 6: NE
 7: MATCH

If you want to create a threshold on this column, you can specify an operator and then a value that would trigger a CRITICAL or WARNING alert.

Enter the index of your choice or press <Ctrl-C> to quit: 0
Enter the CRITICAL threshold: [NotDefined] 100
Enter the WARNING threshold: [NotDefined] 85
Enter the number of occurrences that trigger threshold: [6] 3

This is the number of consecutive occurrences of above CRITICAL or WARNING values that would trigger an alert.

Enter the message to be used when threshold is triggered: [createCount is %value%
and has crossed warning (%warning_threshold%) or critical (%critical_threshold%) threshold.]
Enter NLSID for the message used when threshold is triggered: [createCount_cond]
Enter the name for this metric column at index=1 : [countOfRemoveCount] removeCount
Is this column a KEY Column <y/n>? [n]
Is this column for SUMMARY_UI <y/n>? [n]
Enter the label for column: [removeCount]
Enter the NLSID for column: [removeCount]
Enter the UNIT for column "removeCount": [count]
Do you want to create a threshold for this column <y/n>? [n]
Enter the name of this metric: ServerBeanStats
Enter the label for this metric: [ServerBeanStats]

Do you want periodic collection for this metric <y/n>? [n] y

If the metric does not have to be collected periodically, as would be the case with real-time-only metrics, you can specify "no".

Enter the collection interval in seconds: 60
Periodic collection interval is: 60 seconds.

Do you want to create another metric <y/n>? [n] y
The available targets are:
0: Identifies a deployed stateless session bean
        (oc4j:EJBModule="ejb_ob_engine",J2EEApplication=orabpel,J2EEServer=standalone,j2eeType=StatelessSessionBean,name="ServerBean")

Enter the index of target/MBean you wish to monitor or press <Ctrl-C> to quit: 0

If multiple MBeans match the MBean pattern for the -m option (specified when emjmxcli was invoked) you can select a different MBean from the above list for the next iteration of this command-line session.

Following metric source types are available for selected target(s):
        0: JMX Attributes
        1: JMX Operations
        2: J2EE Statistics

Enter the index of your choice or press <Ctrl-C> to quit: 0

Attributes are:         0: activeInstances       Return Value: int
        1: activeInstancesHighWaterMark  Return Value: int
        2: eventProvider         Return Value: boolean
        3: maxInstances  Return Value: int
        4: minInstances  Return Value: int
        5: ObjectName    Return Value: javax.management.ObjectName
        6: stateManageable       Return Value: boolean
        7: statisticsProvider    Return Value: boolean
        8: stats         Return Value: javax.management.j2ee.statistics.Stats
        9: transactionTimeout    Return Value: int
Select one or more items as comma-separated indices: 0,3,4

Number of possible columns in the resultant metric are 3.
Enter the name for this metric column at index=0 : [activeInstances]
Is this column a KEY Column <y/n>? [n]
Is this column for SUMMARY_UI <y/n>? [n]
Enter the label for column: [activeInstances]
Enter the NLSID for column: [activeInstances]
Enter the UNIT for column "activeInstances": [millisec, kb etc.. ] Do you want to create a threshold for this column <y/n>? [n]
Enter the name for this metric column at index=1 : [maxInstances]
Is this column a KEY Column <y/n>? [n]
Is this column for SUMMARY_UI <y/n>? [n]
Enter the label for column: [maxInstances]
Enter the NLSID for column: [maxInstances]
Enter the UNIT for column "maxInstances": [millisec, kb etc.. ]
Do you want to create a threshold for this column <y/n>? [n]

Enter the name for this metric column at index=2 : [minInstances]
Is this column a KEY Column <y/n>? [n]
Is this column for SUMMARY_UI <y/n>? [n]
Enter the label for column: [minInstances]
Enter the NLSID for column: [minInstances]
Enter the UNIT for column "minInstances": [millisec, kb etc.. ]
Do you want to create a threshold for this column <y/n>? [n]

Enter the name of this metric: ServerBeanCount
Enter the label for this metric: [ServerBeanCount]

Do you want periodic collection for this metric <y/n>? [n] y
Enter the collection interval in seconds: 300
Periodic collection interval is: 300 seconds.

Do you want to create another metric <y/n>? [n] n
Written the metadata xml file: ./metadata/myBPELApp.xml.
Updated the default collection file for myBPELApp at location ./default_collection/myBPELApp.xml.
Exiting...

Example 6-7 Generated Target Metadata File

<!DOCTYPE TargetMetadata SYSTEM "../dtds/TargetMetadata.dtd">
<TargetMetadata META_VER="1.0" TYPE="myBPELApp" CATEGORY
_PROPERTIES="VersionCategory">
   <Display>
      <Label NLSID="myBPELAppNLSID">myBPELApp</Label>
      <ShortName NLSID="myBPELAppShortName">myBPELApp</ShortName>
      <Description NLSID="myBPELAppDescription">myBPELApp</Description>
   </Display>

   <Metric NAME="ServerBeanStats" TYPE="TABLE">
      <Display>
         <Label NLSID="ServerBeanStats">ServerBeanStats</Label>
      </Display>
      <TableDescriptor>
         <ColumnDescriptor NAME="createCount" TYPE="NUMBER">
            <Display>
               <Label NLSID="createCount">createCount</Label>
               <Unit NLSID="count">count</Unit>
            </Display>
         </ColumnDescriptor>
         <ColumnDescriptor NAME="removeCount" TYPE="NUMBER">
            <Display>
               <Label NLSID="removeCount">removeCount</Label>
               <Unit NLSID="count">count</Unit>
            </Display>
         </ColumnDescriptor>
      </TableDescriptor>
      <QueryDescriptor FETCHLET_ID="OJMX">
         <Property NAME="machine" SCOPE="INSTANCE">HTTPMachine</Property>
         <Property NAME="OracleHome" SCOPE="INSTANCE">OracleHome</Property>
         <Property NAME="oc4jInstanceName" SCOPE="INSTANCE"  OPTIONAL="TRUE">OC4JInstanceName</Property>
         <Property NAME="jvmId" SCOPE="INSTANCE" OPTIONAL="TRUE">JVMId</Property>
         <Property NAME="mgmtWebSite" SCOPE="INSTANCE" OPTIONAL="TRUE">MgmtWebSite</Property>
         <Property NAME="authuser" SCOPE="INSTANCE" OPTIONAL="TRUE">authUser</Property>
         <Property NAME="authpwd" SCOPE="INSTANCE" OPTIONAL="TRUE">authPasswd</Property>
         <Property NAME="metric" SCOPE="GLOBAL">ServerBeanStats</Property>
         <Property NAME="delimiter" SCOPE="GLOBAL">|</Property>
         <Property NAME="name" SCOPE="GLOBAL">getStatistics</Property>
         <Property NAME="signature" SCOPE="GLOBAL">objectName,statNames,languageCode,countryCode</Property>
<Property NAME="returnType" SCOPE="GLOBAL">arrayOfComplexObjectBean</Property>
         <Property NAME="dontAddDefaultRowKey" SCOPE="GLOBAL">true</Property>
         <Property NAME="columnOrder" SCOPE="GLOBAL">/CreateCount/count,/RemoveCount/count</Property>
         <Property NAME="arguments" SCOPE="GLOBAL">
            <![CDATA[<arguments>
   <argument>
      <value>oc4j:EJBModule="ejb_ob_engine",J2EEApplication=orabpel,J2EEServer=standalone,j2eeType=StatelessSessionBean,name="ServerBean"</value>
   </argument>
   <argument>
      <value>CreateCount</value>
      <value>RemoveCount</value>
   </argument>
   <argument>
      <value>en</value>
   </argument>
   <argument>
      <value>US</value>
   </argument>
</arguments>]]>
         </Property>
      </QueryDescriptor>
   </Metric>

<Metric NAME="ServerBeanCount" TYPE="TABLE">
      <Display>
         <Label NLSID="ServerBeanCount">ServerBeanCount</Label>
      </Display>
      <TableDescriptor>
         <ColumnDescriptor NAME="activeInstances" TYPE="NUMBER">
            <Display>
               <Label NLSID="activeInstances">activeInstances</Label>
            </Display>
         </ColumnDescriptor>
         <ColumnDescriptor NAME="maxInstances" TYPE="NUMBER">
            <Display>
               <Label NLSID="maxInstances">maxInstances</Label>
            </Display>
         </ColumnDescriptor>
         <ColumnDescriptor NAME="minInstances" TYPE="NUMBER">
            <Display>
               <Label NLSID="minInstances">minInstances</Label>
            </Display>
         </ColumnDescriptor>
      </TableDescriptor>
      <QueryDescriptor FETCHLET_ID="OJMX">
         <Property NAME="machine" SCOPE="INSTANCE">HTTPMachine</Property>
         <Property NAME="OracleHome" SCOPE="INSTANCE">OracleHome</Property>
         <Property NAME="oc4jInstanceName" SCOPE="INSTANCE" OPTIONAL="TRUE">OC4JInstanceName</Property>
         <Property NAME="jvmId" SCOPE="INSTANCE" OPTIONAL="TRUE">JVMId</Property>
         <Property NAME="mgmtWebSite" SCOPE="INSTANCE" OPTIONAL="TRUE">MgmtWebSite</Property>
         <Property NAME="authuser" SCOPE="INSTANCE" OPTIONAL="TRUE">authUser</Property>
         <Property NAME="authpwd" SCOPE="INSTANCE" OPTIONAL="TRUE">authPasswd</Property>
         <Property NAME="metric" SCOPE="GLOBAL">ServerBeanCount</Property>
         <Property NAME="delimiter" SCOPE="GLOBAL">|</Property>
         <Property NAME="name" SCOPE="GLOBAL">getAttributes</Property>
         <Property NAME="signature" SCOPE="GLOBAL">objectName,attributeNames,languageCode,countryCode</Property>
         <Property NAME="returnType" SCOPE="GLOBAL">arrayOfComplexObjectBean</Property>
         <Property NAME="dontAddDefaultRowKey" SCOPE="GLOBAL">true</Property>
         <Property NAME="columnOrder" SCOPE="GLOBAL">/activeInstances,/maxInstances,/minInstances</Property>
<Property NAME="arguments" SCOPE="GLOBAL">
            <![CDATA[<arguments>
   <argument>      <value>oc4j:EJBModule="ejb_ob_engine",J2EEApplication=orabpel,J2EEServer=standalone,j2eeType=StatelessSessionBean,name="ServerBean"</value>
   </argument>
   <argument>
      <value>activeInstances</value>
      <value>maxInstances</value>
      <value>minInstances</value>
   </argument>
   <argument>
      <value>en</value>
   </argument>
   <argument>
      <value>US</value>
   </argument>
</arguments>]]>
         </Property>
      </QueryDescriptor>
   </Metric>

<Metric NAME="Response" TYPE="TABLE">
      <Display>
         <Label NLSID="Response">Response</Label>
      </Display>
      <TableDescriptor>
         <ColumnDescriptor NAME="Status" TYPE="NUMBER">
            <Display>
               <Label NLSID="Status">Status</Label>
            </Display>
         </ColumnDescriptor>
      </TableDescriptor>
      <QueryDescriptor FETCHLET_ID="OJMX">
         <Property NAME="machine" SCOPE="INSTANCE">HTTPMachine</Property>
         <Property NAME="OracleHome" SCOPE="INSTANCE">OracleHome</Property>
         <Property NAME="oc4jInstanceName" SCOPE="INSTANCE" OPTIONAL="TRUE">OC4JInstanceName</Property>
         <Property NAME="jvmId" SCOPE="INSTANCE" OPTIONAL="TRUE">JVMId</Property>
         <Property NAME="mgmtWebSite" SCOPE="INSTANCE" OPTIONAL="TRUE">MgmtWebSite</Property>
         <Property NAME="authuser" SCOPE="INSTANCE" OPTIONAL="TRUE">authUser</Property>
         <Property NAME="authpwd" SCOPE="INSTANCE" OPTIONAL="TRUE">authPasswd</Property>
         <Property NAME="metric" SCOPE="GLOBAL">Response</Property>
         <Property NAME="delimiter" SCOPE="GLOBAL">|</Property>
         <Property NAME="name" SCOPE="GLOBAL">getAttributes</Property>
         <Property NAME="signature" SCOPE="GLOBAL">objectName,attributeNames,languageCode,countryCode</Property>
         <Property NAME="returnType" SCOPE="GLOBAL">arrayOfComplexObjectBean</Property>
         <Property NAME="dontAddDefaultRowKey" SCOPE="GLOBAL">true</Property>
         <Property NAME="columnOrder" SCOPE="GLOBAL">/state</Property>
         <Property NAME="arguments" SCOPE="GLOBAL">
            <![CDATA[<arguments>
   <argument>
      <value>oc4j:J2EEServer=standalone,j2eeType=J2EEApplication,name=orabpel</value>
   </argument>
   <argument>
      <value>state</value>
   </argument>
   <argument>
      <value>en</value>
   </argument>
   <argument>
      <value>US</value>
   </argument>
</arguments>]]>
         </Property>
      </QueryDescriptor>
   </Metric>

   <InstanceProperties>
      <InstanceProperty NAME="HTTPMachine">
         <Display>
            <Label NLSID="dms_HTTPMachine_iprop">Machine name</Label>
         </Display>
      </InstanceProperty>
      <InstanceProperty NAME="OracleHome">
         <Display>
            <Label NLSID="dms_OracleHome_iprop">Oracle home path</Label>
         </Display>
      </InstanceProperty>
<InstanceProperty NAME="OC4JInstanceName" OPTIONAL="TRUE"><Display><Label NLSID="OC4JInstanceNameiprop">OC4JInstanceName</Label></Display>home</InstanceProperty>
      <InstanceProperty NAME="JVMId" OPTIONAL="TRUE"><Display><Label NLSID="JVMId_iprop">JVMId</Label></Display>1</InstanceProperty>
      <InstanceProperty NAME="MgmtWebSite" OPTIONAL="TRUE"><Display><Label NLSID="MgmtWebSite_iprop">MgmtWebSite</Label></Display>default-web-site</InstanceProperty>
      <InstanceProperty NAME="URI" OPTIONAL="TRUE"><Display><Label NLSID="URI">URI</Label></Display>/JMXSoapAdapter/JMXSoapAdapter</InstanceProperty>
      <InstanceProperty NAME="authUser" OPTIONAL="TRUE">
         <Display>
            <Label NLSID="dms_authUser_iprop">Username for Basic authorization</Label>
         </Display>
      </InstanceProperty>
      <InstanceProperty NAME="authPasswd" OPTIONAL="TRUE" CREDENTIAL="TRUE">
         <Display>
            <Label NLSID="dms_authPasswd_iprop">Password for Basic authorization</Label>
         </Display>
      </InstanceProperty>
      <InstanceProperty NAME="Version" OPTIONAL="TRUE"><Display><Label NLSID="oc4j_version_iprop">Version of myBPELApp</Label></Display>1.0</InstanceProperty>
   </InstanceProperties>
</TargetMetadata>

Example 6-8 Generated Metric Collection File

<!DOCTYPE TargetCollection SYSTEM "../dtds/TargetCollection.dtd">
<!-- This file is generated by Collector at 2006-04-28 12:11:55 -->

<TargetCollection TYPE="myBPELApp" INCLUDE_DEFAULT="TRUE">
        <CollectionItem NAME="ServerBeanStats" UPLOAD="YES">
                <Schedule>
                        <IntervalSchedule INTERVAL="60" TIME_UNIT="Sec"/>
                </Schedule>
                <MetricColl NAME="ServerBeanStats">
                        <Condition COLUMN_NAME="createCount" CRITICAL="100"           WARNING="85" OPERATOR="GT" OCCURRENCES="3" MESSAGE="createCount is %value% and has crossed warning (%warning_threshold%) or critical (%critical_threshold%) threshold." MESSAGE_NLSID="createCount_cond"/>
                </MetricColl>
        </CollectionItem>
        <CollectionItem NAME="ServerBeanCount" UPLOAD="YES">
                <Schedule>
                        <IntervalSchedule INTERVAL="300" TIME_UNIT="Sec"/>
                </Schedule>
                <MetricColl NAME="ServerBeanCount">
                </MetricColl>
        </CollectionItem>

        <CollectionItem NAME="Response" UPLOAD="YES">
                <Schedule>
                        <IntervalSchedule INTERVAL="30" TIME_UNIT="Sec"/>
                </Schedule>
                <MetricColl NAME="Response">
                        <Condition COLUMN_NAME="Status" CRITICAL="1" WARNING="NotDefined" OPERATOR="NE" OCCURRENCES="2" MESSAGE="Status is %value% and has crossed warning (%warning_threshold%) or critical (%critical_threshold%) threshold." MESSAGE_NLSID="Status_cond"/>
                </MetricColl>
        </CollectionItem>
</TargetCollection>

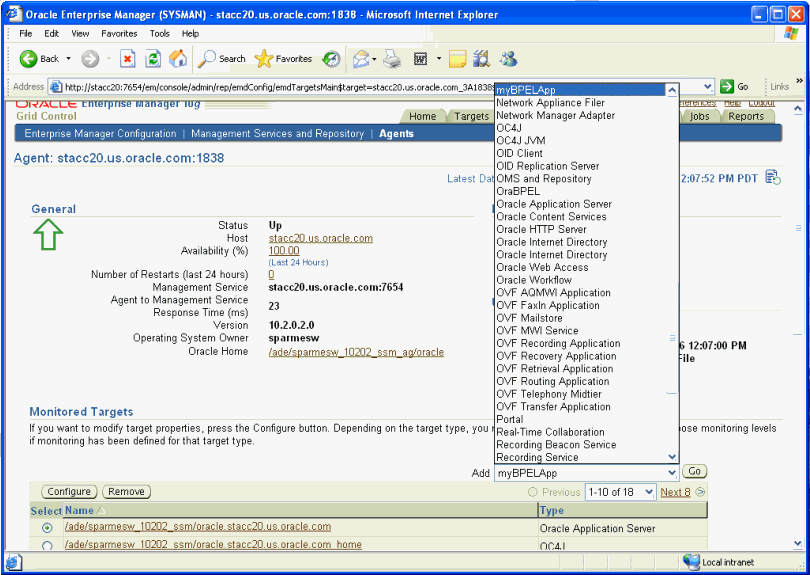

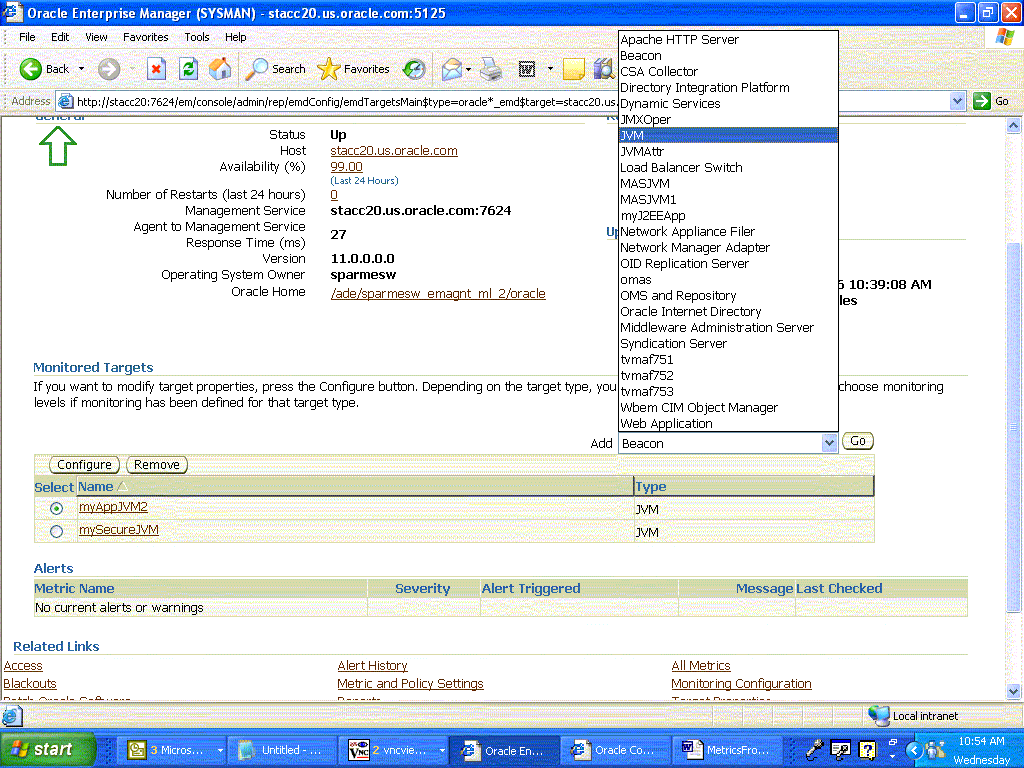

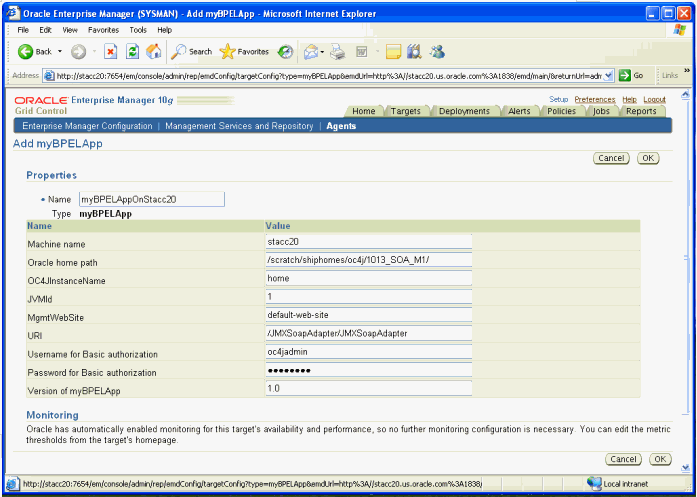

Example 6-10 Sample EMJMXCLI Session

oracleHome=/ade/sparmesw_emas_ml/oracle
userJars=

Connecting to server: localhost:6789
Connecting without authentication. For specifying username and password use
the
-u and -c options.

Obtained 14 MBeans matching pattern java.lang:*.

Enter the target type for this metric: [myJ2EEApp] myJavaApp

Enter the target version: [1.0]

Enter the target metadata file: [./metadata/myJavaApp.xml]

Enter the default collections file: [./default_collection/myJavaApp.xml]

Enter a label for this target type: [myJavaApp]

Enter a description for this target type: [myJavaApp]
The available targets are:
0: sun.management.CompilationImpl
        (java.lang:type=Compilation)1: sun.management.MemoryManagerImpl        (java.lang:name=CodeCacheManager,type=MemoryManager)2: sun.management.GarbageCollectorImpl        (java.lang:name=Copy,type=GarbageCollector)3: sun.management.MemoryPoolImpl        (java.lang:name=Eden Space,type=MemoryPool)4: sun.management.RuntimeImpl        (java.lang:type=Runtime)5: sun.management.ClassLoadingImpl        (java.lang:type=ClassLoading)6: sun.management.MemoryPoolImpl        (java.lang:name=Survivor Space,type=MemoryPool)7: sun.management.ThreadImpl        (java.lang:type=Threading)

8: sun.management.GarbageCollectorImpl        (java.lang:name=MarkSweepCompact,type=GarbageCollector)9: com.sun.management.UnixOperatingSystem        (java.lang:type=OperatingSystem)10: sun.management.MemoryImpl        (java.lang:type=Memory)11: sun.management.MemoryPoolImpl        (java.lang:name=Code Cache,type=MemoryPool)12: sun.management.MemoryPoolImpl        (java.lang:name=Tenured Gen,type=MemoryPool)13: sun.management.MemoryPoolImpl        (java.lang:name=Perm Gen,type=MemoryPool)Enter the index of target/MBean you wish to monitor or press <Ctrl-C> to quit: 4Following metric source types are available for selected target(s):        0: JMX AttributesEnter the index of your choice or press <Ctrl-C> to quit: 0Attributes are:         0: BootClassPath         Return Value: java.lang.String        1: BootClassPathSupported        Return Value: boolean        2: ClassPath     Return Value: java.lang.String        3: InputArguments        Return Value: [Ljava.lang.String;        4: LibraryPath   Return Value: java.lang.String        5: ManagementSpecVersion         Return Value: java.lang.String        6: Name  Return Value: java.lang.String        7: SpecName      Return Value: java.lang.String        8: SpecVendor    Return Value: java.lang.String        9: SpecVersion   Return Value: java.lang.String        10: StartTime    Return Value: long        11: SystemProperties     Return Value:javax.management.openmbean.TabularData        12: Uptime       Return Value: long        13: VmName       Return Value: java.lang.String        14: VmVendor     Return Value: java.lang.String        15: VmVersion    Return Value: java.lang.StringSelect one or more items as comma-separated indices: 6,7,8

Number of possible columns in the resultant metric are 3.Enter the name for this metric column at index=0 : [Name] Is this column a KEY Column <y/n>? [n] yIs this column for SUMMARY_UI <y/n>? [n] Enter the label for column: [Name] Enter the NLSID for column: [Name] Enter the UNIT for column "Name": [millisec, kb etc.. ] Enter the name for this metric column at index=1 : [SpecName] Is this column a KEY Column <y/n>? [n] Is this column for SUMMARY_UI <y/n>? [n] Enter the label for column: [SpecName] Enter the NLSID for column: [SpecName] Enter the UNIT for column "SpecName": [millisec, kb etc.. ] Do you want to create a threshold for this column <y/n>? [n] Enter the name for this metric column at index=2 : [SpecVendor] Is this column a KEY Column <y/n>? [n] Is this column for SUMMARY_UI <y/n>? [n] Enter the label for column: [SpecVendor] Enter the NLSID for column: [SpecVendor] Enter the UNIT for column "SpecVendor": [millisec, kb etc.. ] Do you want to create a threshold for this column <y/n>? [n]

Enter the name of this metric: RuntimeMetricEnter the label for this metric: [RuntimeMetric] Do you want periodic collection for this metric <y/n>? [n] yEnter the collection interval in seconds: 300Periodic collection interval is: 300 seconds.Do you want to create another metric <y/n>? [n] Written the metadata xml file: ./metadata/myJavaApp.xml.Creating new file: ./default_collection/myJavaApp.xml.Updated the default collection file for myJavaApp at location./default_collection/myJavaApp.xml.Exiting...

Example 6-11 emjmxcli Session

ade:[ sparmesw_egcli ] [sparmesw@stacc20 bin]$ ./emjmxcli -t WebLogic -l "service:jmx:t3://stbct14:22048/jndi/weblogic.management.mbeanservers.runtime" -u weblogic -c welcome1 -s "*:type=soainfra_bpel_requests,*"

NOTE 1: The -s option above will result in a metric with as many rows as the number of MBeans which match the ObjectName pattern specified, every time the metric is collected by the emagent. If you need to always collect from a specfic Mbean then use the -m <ObjectName> option instead of the -s <Mbean pattern> used in above example.

NOTE 2: If you need to use t3s to connect to the weblogic server then the following env variable needs to be set before invoking the emjmxcli

setenv USER_JAVA_PROPS=-Dweblogic.security.TrustKeyStore=CustomTrust
 -Dweblogic.security.CustomTrustKeyStoreFileName=$ORACLE_HOME/sysman/config/montrust/AgentTrust.jks
 -Dweblogic.security.SSL.enforceConstraints=off
 -Dweblogic.security.SSL.ignoreHostnameVerification=true
 -Djavax.net.ssl.trustStore=$ORACLE_HOME/sysman/config/montrust/AgentTrust.jks  (or set USER_JAVA_PROP= … equivalent on win32)
setenv USER_JARS  <; separated list of jars needed in classpath if custom authentication modules are involved in SSL connection>

A semi-colon is used as a delimiter for the list of jar files.

Example: setenv USER_JARS "jar1;jar2;jar3"

In some cases, if MBeans return custom weblogic objects in their MBeanInfo, the weblogic.jar may need to be set to the above env variable before invoking the emjmxcli.

Example: setenv USER_JARS $BEA_HOME/server/lib/weblogic.jar

oracleHome=/ade/sparmesw_egcli/oracle/work/middleware/oms
userJars=
Connecting to server:
 service:jmx:t3://stbct14:22048/jndi/weblogic.management.mbeanservers.runtime
Connecting as user: weblogic
Obtained 3 MBeans matching pattern *:type=soainfra_bpel_requests,*.

Enter the target type for this metric: [myJ2EEApp] myCustomWLApp
Enter the target version: [1.0]
Enter the target metadata file: [./metadata/myCustomWLApp.xml]
Enter the default collections file: [./default_collection/myCustomWLApp.xml]
Enter a label for this target type: [myCustomWLApp]
Enter a description for this target type: [myCustomWLApp]
The available targets are:
0: DMS metric mbean
        (oracle.dms:name=/soainfra/engines/bpel/requests/engine,type=soainfra_bpel_requests)
1: DMS metric mbean
        (oracle.dms:name=/soainfra/engines/bpel/requests/system,type=soainfra_bpel_requests)
2: DMS metric mbean
        (oracle.dms:name=/soainfra/engines/bpel/requests/invoke,type=soainfra_bpel_requests)
Following metric source types are available for selected target(s):
        0: JMX Attributes
Enter the index of your choice or press <Ctrl-C> to quit: 0
Attributes are:
        0: active_count  Return Value: java.lang.Integer
        1: active_maxValue       Return Value: java.lang.Integer
        2: active_minValue       Return Value: java.lang.Integer
        3: active_value  Return Value: java.lang.Integer
        4: Name  Return Value: java.lang.String
        5: Parent        Return Value: java.lang.String
        6: scheduled_count       Return Value: java.lang.Integer
        7: scheduled_maxValue    Return Value: java.lang.Integer
        8: scheduled_minValue    Return Value: java.lang.Integer
        9: scheduled_value       Return Value: java.lang.Integer
        10: threadCount_count    Return Value: java.lang.Integer
        11: threadCount_maxValue         Return Value: java.lang.Integer
        12: threadCount_minValue         Return Value: java.lang.Integer
        13: threadCount_value    Return Value: java.lang.Integer

Select one or more items as comma separated indices: 4,0,1,2
Number of possible columns in the resultant metric are 4.

Enter the name for this metric column at index=0 : [Name]
Is this column a KEY Column <y/n>? [n] y

Specifying "y" signifies that the value of this column is unique in case multiple rows are returned.

Is this column for SUMMARY_UI <y/n>? [n]
Enter the label for column: [Name]
Enter the NLSID for column: [Name]
Enter the UNIT for column "Name": [millisec, kb etc.. ]

Enter the name for this metric column at index=1 : [active_count]
Is this column a KEY Column <y/n>? [n]
Is this column for SUMMARY_UI <y/n>? [n]
Enter the label for column: [active_count]
Enter the NLSID for column: [active_count]
Enter the UNIT for column "active_count": [millisec, kb etc.. ]
Do you want to create a threshold for this column <y/n>? [n] y
Creating threshold!!
Following operators are available for creating thresholds:
 0: GT
 1: EQ
 2: LT
 3: LE
 4: GE
 5: CONTAINS
 6: NE
 7: MATCH

Enter the index of your choice or press <Ctrl-C> to quit: 0
Enter the CRITICAL threshold: [NotDefined] 50
Enter the WARNING threshold: [NotDefined] 45
Enter the number of occurrences that trigger threshold: [6] 3
Enter the message to be used when threshold is triggered: [active_count is %value% and has crossed warning (%warning_threshold%) or critical (%critical_threshold%) threshold.]
Enter NLSID for the message used when threshold is triggered: [active_count_cond] Enter the name for this metric column at index=2 : [active_maxValue]
Is this column a KEY Column <y/n>? [n]
Is this column for SUMMARY_UI <y/n>? [n]
Enter the label for column: [active_maxValue]
Enter the NLSID for column: [active_maxValue]
Enter the UNIT for column "active_maxValue": [millisec, kb etc.. ]
Do you want to create a threshold for this column <y/n>? [n]

Enter the name for this metric column at index=3 : [active_minValue]
Is this column a KEY Column <y/n>? [n]
Is this column for SUMMARY_UI <y/n>? [n]
Enter the label for column: [active_minValue]
Enter the NLSID for column: [active_minValue]
Enter the UNIT for column "active_minValue": [millisec, kb etc.. ]
Do you want to create a threshold for this column <y/n>? [n]

Enter the name of this metric: bpel_requests
Enter the label for this metric: [bpel_requests]

Do you want periodic collection for this metric <y/n>? [n] y
Enter the collection interval in seconds: 300
Periodic collection interval is: 300 seconds.

Do you want to create another metric <y/n>? [n]
Written the metadata xml file: ./metadata/myCustomWLApp.xml.
Creating new file: ./default_collection/myCustomWLApp.xml.
Updated the default collection file for myCustomWLApp at location ./default_collection/myCustomWLApp.xml.
Exiting...

Example 6-12 Sample emjmxcli Invocation (using -m and defining multiple metrics from multiple Mbeans in one emjmxcli session

$ ./emjmxcli -t WebLogic -l "service:jmx:t3://stbct14:22048/jndi/weblogic.management.mbeanservers.runtime" -u weblogic -c welcome1 -m "com.bea:ApplicationRuntime=soa-infra,WebAppComponentRuntime=soa_server1_/b2b,*"

oracleHome=/ade/sparmesw_egcli/oracle/work/middleware/oms
userJars=
Connecting to server: service:jmx:t3://stbct14:22048/jndi/weblogic.management.mbeanservers.runtime
Connecting as user: weblogic
Obtained 8 MBeans matching pattern com.bea:ApplicationRuntime=soa-infra,WebAppComponentRuntime=soa_server1_/b2b,*.

Enter the target type for this metric: [myJ2EEApp] myCustomWLApp

Enter the target version: [1.0]

Enter the target metadata file: [./metadata/myCustomWLApp.xml]

Enter the default collections file: [./default_collection/myCustomWLApp.xml]
The file ./metadata/myCustomWLApp.xml already exists.

Do you want to overwrite the existing file, append to it, or quit <o/a/q>? [a]

Note: Because the file already exists, it will be appended.

Appending to existing file: ./metadata/myCustomWLApp.xml.The available targets are: 0: (com.bea:ApplicationRuntime=soa-infra,Name=JspServlet,ServerRuntime=soa_server1,Type=ServletRuntime,WebAppComponentRuntime=soa_server1_/b2b)1: (com.bea:ApplicationRuntime=soa-infra,Name=transportServlet,ServerRuntime=soa_server1,Type=ServletRuntime,WebAppComponentRuntime=soa_server1_/b2b)2: (com.bea:ApplicationRuntime=soa-infra,Name=transportServletV,ServerRuntime=soa_server1,Type=ServletRuntime,WebAppComponentRuntime=soa_server1_/b2b)3: (com.bea:ApplicationRuntime=soa-infra,Name=b2b_starter_wls,ServerRuntime=soa_server1,Type=ServletRuntime,WebAppComponentRuntime=soa_server1_/b2b)4: (com.bea:ApplicationRuntime=soa-infra,Name=soa_server1_soa_server1_/b2b,ServerRuntime=soa_server1,Type=PageFlowsRuntime,WebAppComponentRuntime=soa_server1_/b2b)5 (com.bea:ApplicationRuntime=soa-infra,Name=WebServiceServlet,ServerRuntime=soa_server1,Type=ServletRuntime,WebAppComponentRuntime=soa_server1_/b2b)6: (com.bea:ApplicationRuntime=soa-infra,Name=RedirectUIServlet,ServerRuntime=soa_server1,Type=ServletRuntime,WebAppComponentRuntime=soa_server1_/b2b)7: (com.bea:ApplicationRuntime=soa-infra,Name=FileServlet,ServerRuntime=soa_server1,Type=ServletRuntime,WebAppComponentRuntime=soa_server1_/b2b)Enter the index of target/MBean you wish to monitor or press <Ctrl-C> to quit: 4Following metric source types are available for selected target(s):        0: JMX Attributes        1: JMX OperationsEnter the index of your choice or press <Ctrl-C> to quit: 0Attributes are:         0: AppName       Return Value: java.lang.String        1: ContextPath   Return Value: java.lang.String        2: HttpServerName        Return Value: java.lang.String        3: Name  Return Value: java.lang.String        4: PageFlows     Return Value: [Ljavax.management.ObjectName;        5: Parent        Return Value: javax.management.ObjectName        6: ServerName    Return Value: java.lang.String        7: Type  Return Value: java.lang.StringSelect one or more items as comma separated indices: 3,0,1Number of possible columns in the resultant metric are 3.Enter the name for this metric column at index=0 : [Name] Is this column a KEY Column <y/n>? [n] yIs this column for SUMMARY_UI <y/n>? [n] Enter the label for column: [Name] Enter the NLSID for column: [Name] Enter the UNIT for column "Name": [millisec, kb etc.. ] Enter the name for this metric column at index=1 : [AppName] Is this column a KEY Column <y/n>? [n] Is this column for SUMMARY_UI <y/n>? [n] Enter the label for column: [AppName] Enter the NLSID for column: [AppName] Enter the UNIT for column "AppName": [millisec, kb etc.. ] Do you want to create a threshold for this column <y/n>? [n] Enter the name for this metric column at index=2 : [ContextPath] Is this column a KEY Column <y/n>? [n] Is this column for SUMMARY_UI <y/n>? [n] Enter the label for column: [ContextPath] Enter the NLSID for column: [ContextPath] Enter the UNIT for column "ContextPath": [millisec, kb etc.. ] Do you want to create a threshold for this column <y/n>? [n] Enter the name of this metric: PageFlowsRuntimeEnter the label for this metric: [PageFlowsRuntime] Do you want periodic collection for this metric <y/n>? [n] yEnter the collection interval in seconds: 3600Periodic collection interval is: 3600 seconds.Do you want to create another metric <y/n>? [n] y

This indicates more metrics need to be created in this emjmxcli session. This process will repeat until you answer "n" to the question.

Do you want to create another metric <y/n>? [n] Written the metadata xml file: ./metadata/myCustomWLApp.xml.Updated the default collection file for myCustomWLApp at location ./default_collection/myCustomWLApp.xml.Exiting...

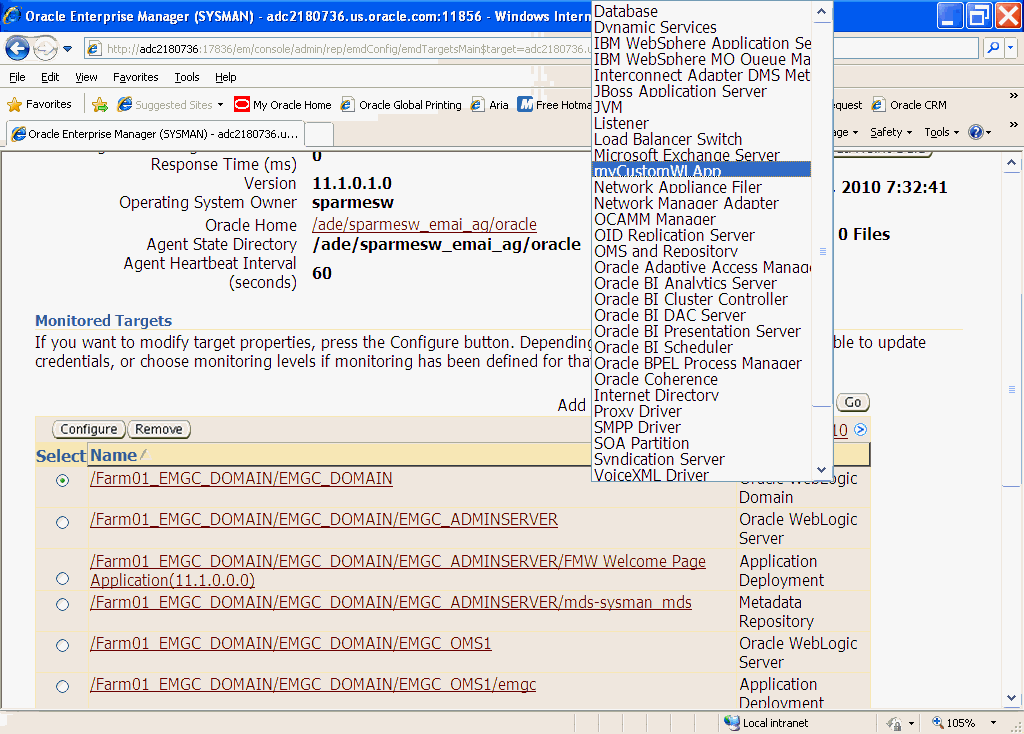

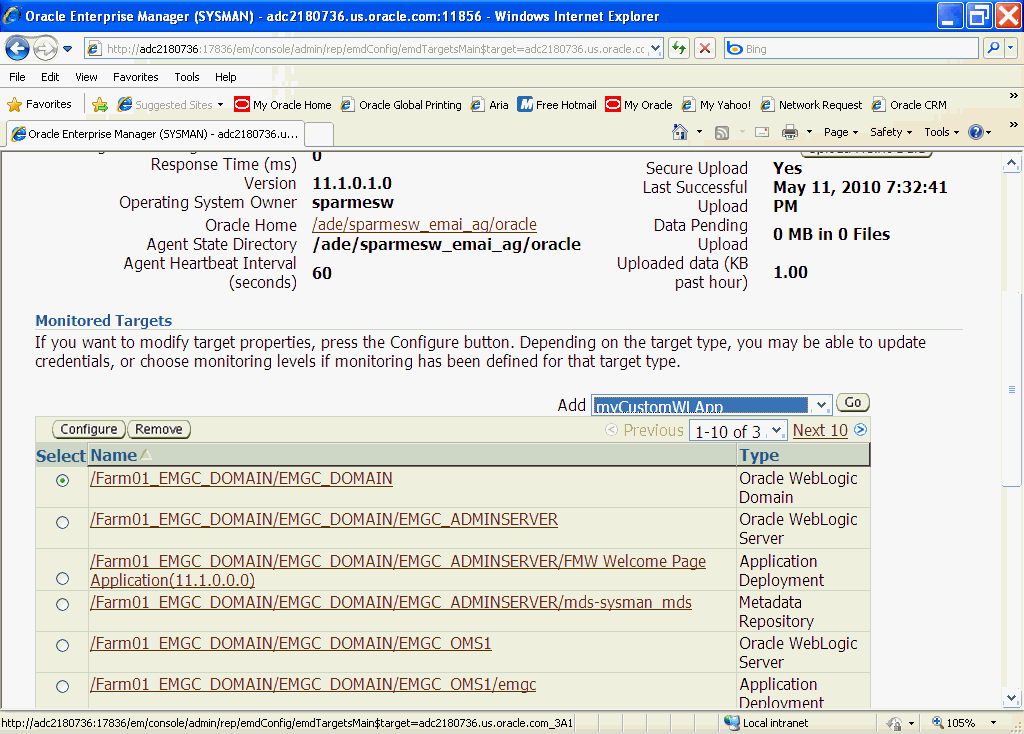

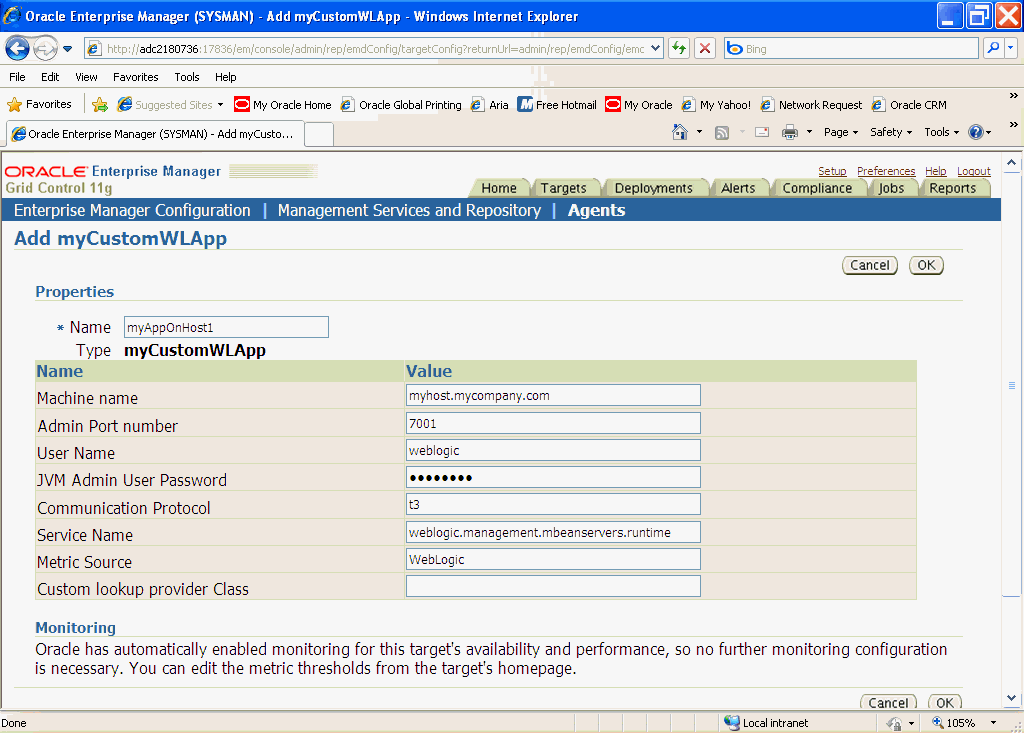

After the JMX command-line tool generates the target metadata and collection files, you can create the Management Plug-in archive.

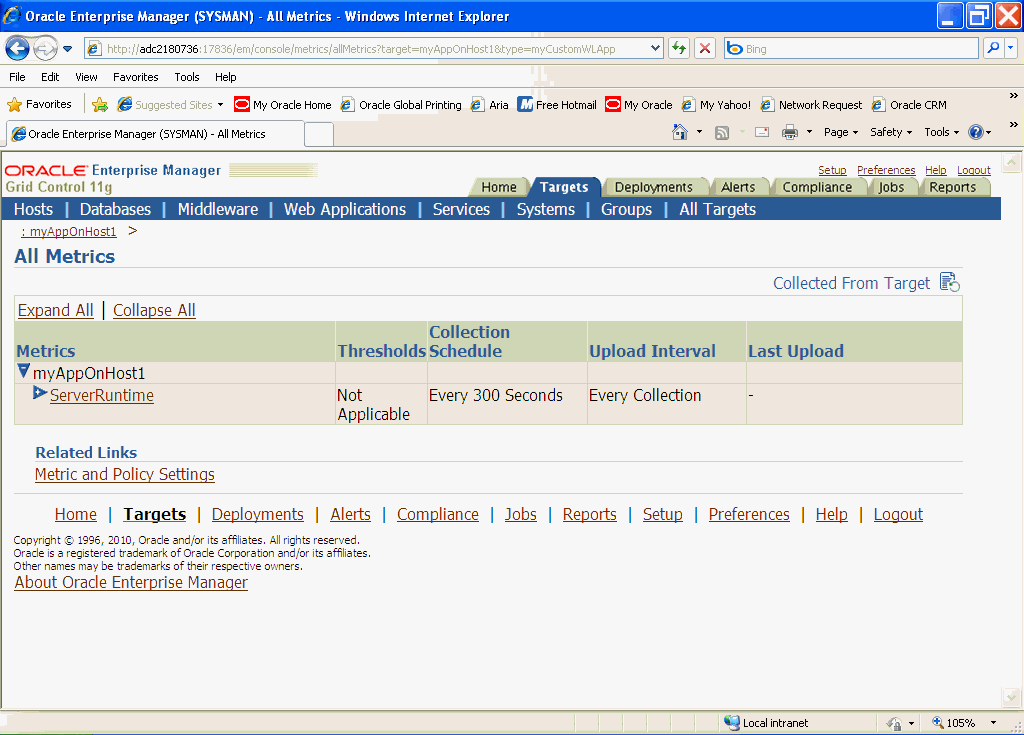

Example 6-13 Adding a Response Metric

setenv USER_JARS $T_WORK/middleware/wlserver_10.3/server/lib/weblogic.jar

This is required as some MBeans return Weblogic-specific classes which the JMX client (emjmxcli) needs in its classpath.

$ ./emjmxcli -t WebLogic -l "service:jmx:t3://stbct14:22048/jndi/weblogic.management.mbeanservers.runtime" -u weblogic -c welcome1 -m com.bea:Type=ApplicationRuntime,Name=soa-infra,*"

For J2EE applications deployed on Weblogic it may be appropriate to make the ActiveVersionState JMX attribute of the ApplicationRuntime Mbean corresponding to the application deployment as the Status column. However, any other attribute of any other relevant Mbean to the application could also be used.

oracleHome=/ade/sparmesw_egcli/oracle/work/middleware/oms
userJars=
Connecting to server: service:jmx:t3://stbct14:22048/jndi/weblogic.management.mbeanservers.runtime
Connecting as user: weblogic
Obtained 1 MBeans matching pattern
 com.bea:Type=ApplicationRuntime,Name=soa-infra,*.
Enter the target type for this metric: [myJ2EEApp] myCustomWLApp
Enter the target version: [1.0]
Enter the target metadata file: [./metadata/myCustomWLApp.xml]
Enter the default collections file: [./default_collection/myCustomWLApp.xml]
The file ./metadata/myCustomWLApp.xml already exists.

Do you want to overwrite the existing file, append to it, or quit <o/a/q>? [a]
Appending to existing file: ./metadata/myCustomWLApp.xml.
The available targets are:
0: (com.bea:Name=soa-infra,ServerRuntime=soa_server1,Type=ApplicationRuntime)
Enter the index of target/MBean you wish to monitor or press <Ctrl-C> to quit: 0
Following metric source types are available for selected target(s):
        0: JMX Attributes
        1: JMX Operations
Enter the index of your choice or press <Ctrl-C> to quit: 0
Attributes are:
        0: ActiveVersionState    Return Value: java.lang.Integer
        1: ApplicationName       Return Value: java.lang.String
        2: ApplicationVersion    Return Value: java.lang.String
        3: ClassRedefinitionRuntime      Return Value: javax.management.ObjectName        4: ComponentRuntimes     Return Value: [Ljavax.management.ObjectName;
        5: EAR   Return Value: java.lang.Boolean
        6: HealthState   Return Value: weblogic.health.HealthState
        7: KodoPersistenceUnitRuntimes   Return Value: [Ljavax.management.ObjectName;        8: LibraryRuntimes       Return Value: [Ljavax.management.ObjectName;
        9: MaxThreadsConstraintRuntimes  Return Value: [Ljavax.management.ObjectName;
        10: MinThreadsConstraintRuntimes         Return Value: [Ljavax.management.ObjectName;
        11: Name         Return Value: java.lang.String
        12: OptionalPackageRuntimes      Return Value: [Ljavax.management.ObjectName;
        13: Parent       Return Value: javax.management.ObjectName
        14: QueryCacheRuntimes   Return Value: [Ljavax.management.ObjectName;
        15: RequestClassRuntimes         Return Value: [Ljavax.management.ObjectName;
        16: Type         Return Value: java.lang.String
        17: WorkManagerRuntimes  Return Value: [Ljavax.management.ObjectName;
        18: WseeRuntimes         Return Value: [Ljavax.management.ObjectName;

Select one or more items as comma separated indices: 0

Number of possible columns in the resultant metric are 1.

Enter the name for this metric column at index=0 : [ActiveVersionState] Status

Note: The column name must be "Status".

Is this column a KEY Column <y/n>? [n]
Is this column for SUMMARY_UI <y/n>? [n]
Enter the label for column: [Status]
Enter the NLSID for column: [Status]
Enter the UNIT for column "Status": [millisec, kb etc.. ]
Do you want to create a threshold for this column <y/n>? [n] y
Creating threshold!!
Following operators are available for creating thresholds:
 0: GT
 1: EQ
 2: LT
 3: LE
 4: GE
 5: CONTAINS
 6: NE
 7: MATCH

Enter the index of your choice or press <Ctrl-C> to quit: 6
Enter the CRITICAL threshold: [NotDefined] 2

Status of target is marked down if a CRITICAL THRESHOLD is triggered on the Status column of the Response Metric.. In this case if value != ACTIVATED (ie: != 2)

Enter the WARNING threshold: [NotDefined]
Enter the number of occurrences that trigger threshold: [6] 1
Enter the message to be used when threshold is triggered: [Status is %value% and has crossed warning (%warning_threshold%) or critical (%critical_threshold%) threshold.]
Enter NLSID for the message used when threshold is triggered: [Status_cond]

Enter the name of this metric: Response

Note: The metric name must be "Response".

Enter the label for this metric: [Response]

Do you want periodic collection for this metric <y/n>? [n] y
Enter the collection interval in seconds: 30
Periodic collection interval is: 30 seconds.

Do you want to create another metric <y/n>? [n]
Written the metadata xml file: ./metadata/myCustomWLApp.xml.
Updated the default collection file for myCustomWLApp at location ./default_collection/myCustomWLApp.xml.
Exiting...

Example 6-14 QueryDescriptor Example for Manually Creating Additional Properties

<QueryDescriptor FETCHLET_ID="JMX">
         <Property NAME="MachineName" SCOPE="INSTANCE">MachineName</Property>
         <Property NAME="Port" SCOPE="INSTANCE">Port</Property>
         <Property NAME="UserName" SCOPE="INSTANCE" OPTIONAL="TRUE">UserName</Property>
         <Property NAME="password" SCOPE="INSTANCE" OPTIONAL="TRUE">password</Property>
         <Property NAME="protocol" SCOPE="INSTANCE" OPTIONAL="TRUE">protocol</Property>
         <Property NAME="service" SCOPE="INSTANCE" OPTIONAL="TRUE">service</Property>
         <Property NAME="SSLTrustStore" SCOPE="INSTANCE" OPTIONAL="TRUE">SSLTrustStore</Property>
         <Property NAME="SSLTrustStorePassword" SCOPE="INSTANCE" OPTIONAL="TRUE">SSLTrustStorePassword</Property>
         <Property NAME="lookupClass" SCOPE="INSTANCE" OPTIONAL="TRUE">com.mycompany.JMXLookup</Property>
         <Property NAME="lookupP1" SCOPE="GLOBAL" OPTIONAL="TRUE">false</Property>
         <Property NAME="lookupP2" SCOPE="GLOBAL" OPTIONAL="TRUE">myMBeanServerName</Property>
<Property NAME="lookupProperties" SCOPE="INSTANCE" OPTIONAL="TRUE">lookupP1, lookupP2</Property>
         <Property NAME="nestedView" SCOPE="GLOBAL" OPTIONAL="TRUE">false</Property>
         <Property NAME="metric" SCOPE="GLOBAL">java.lang:type=Runtime</Property>
         <Property NAME="identityCol" SCOPE="GLOBAL" OPTIONAL="TRUE">none</Property>
         <Property NAME="columnOrder" SCOPE="GLOBAL">VmName;VmVendor;VmVersion;Uptime</Property>
      </QueryDescriptor>

Example 6-15 Look-up Class Code Example
