18 High Availability: Multiple Resource Configurations

Post Management Service - Install Management Repository Configuration

There are some parameters that should be configured during the Management Repository database install (as previously mentioned) and some parameters that should be set after the Management Service has been installed.

Start by installing Management Agents on each Management Repository RAC node. Once the Management Agents are installed and the Management Repository database is discovered as a target, the Enterprise Manager console can be used to configure these best practices in the Management Repository.

These best practices fall in the area of:

• Configuring Storage

• Configuring Oracle Database 11g with RAC for High Availability and Fast Recoverability

  • Enable ARCHIVELOG Mode

  • Enable Block Checksums

  • Configure the Size of Redo Log Files and Groups Appropriately

  • Use a Flash Recovery Area

  • Enable Flashback Database

  • Use Fast-Start Fault Recovery to Control Instance Recovery Time

  • Enable Database Block Checking

  • Set DISK_ASYNCH_IO

  The details of these settings are available in Oracle Database High Availability Best Practices.

  Use the MAA Advisor for additional high availability recommendations that should be applied to the Management Repository. To access the MAA Advisor:

  1. On the Database Target Home page, locate the High Availability section.

  2. Click Details next to the Console item.

  3. In the Availability Summary section of the High Availability Console page, click Details located next to the MAA Advisor item.

Management Service Install Location

If you are managing a large environment with multiple Management Services and Management Repository nodes, then consider installing the Management Services on hardware nodes that are different from Management Repository nodes (Figure 18-3). This allows you to scale out the Management Services in the future.

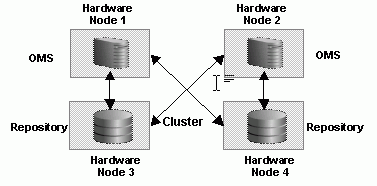

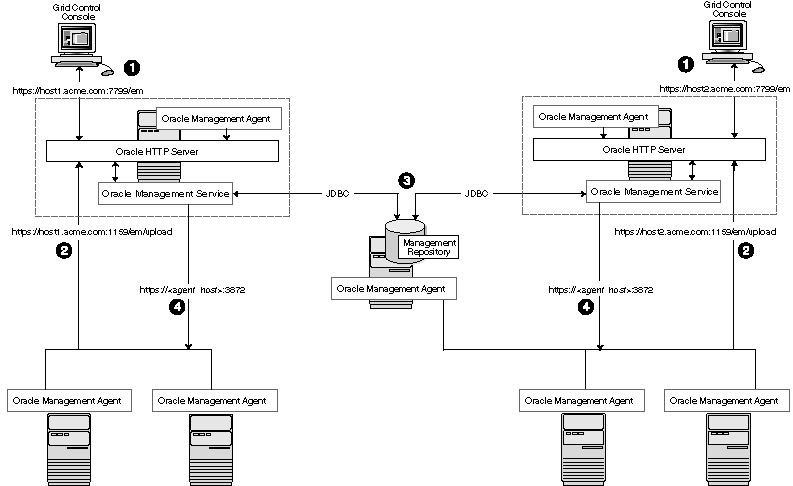

Figure 18-3 Management Service and Management Repository on Separate Hardware

Also consider the network latency between the Management Service and the Management Repository while determining the Management Service install location. The distance between the Management Service and the Management Repository may be one of the factors that affect network latency and hence determine Enterprise Manager performance.

If the network latency between the Management Service and Management Repository tiers is high or the hardware available for running Enterprise Manager is limited, then the Management Service can be installed on the same hardware as the Management Repository (Figure 18-4). This allows for Enterprise Manager high availability, as well as keep the costs down.

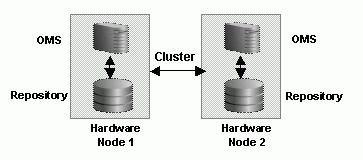

Figure 18-4 Management Service and Management Repository on Same Hardware

Configuring the First Management Service for High Availability

If you plan ahead, you can configure your Enterprise Manager deployment for high availability by choosing the correct options during the first Management Service install. You can also retrofit the MAA best practices into an existing Enterprise Manager deployment configured initially using the default install options. Both paths will be addressed in the following sections.

Configuring Management Service to Management Repository Communication

Management Service processes need to be configured to communicate with each node of the RAC Management Repository in a redundant fashion.

Note that Real Application Cluster (RAC) nodes are referred to by their virtual IP (vip) names. The service_name parameter is used instead of the system identifier (SID) in connect_data mode and failover is turned on. Refer to Oracle Database Net Services Administrator's Guide for details.

Configure the repository connect descriptor by running the emctl command from any Management Service:

emctl config oms -store_repos_details -repos_conndesc '"(DESCRIPTION=
(ADDRESS_LIST=(FAILOVER=ON)
(ADDRESS=(PROTOCOL=TCP)(HOST=node1-vip.example.com)(PORT=1521))
(ADDRESS=(PROTOCOL=TCP)(HOST=node2-vip.example.com)(PORT=1521)))
(CONNECT_DATA=(SERVICE_NAME=EMREP)))"' -repos_user sysman

After making the previous change, run the following command to make the same change to the monitoring configuration used for the Management Services and Repository target: emctl config emrep -conn_desc

Configuring Shared File System Loader

The Management Service for Grid Control has a high availability feature called the Shared Filesystem Loader. In the Shared Filesystem Loader, management data files received from Management Agents are stored temporarily on a common shared location called the shared receive directory. All Management Services are configured to use the same storage location for the shared receive directory. The Management Services coordinate internally and distribute among themselves the workload of uploading files into the Management Repository. Should a Management Service go down, its workload is taken up by surviving Management Services. You must choose a shared receive directory that is accessible by all the Management Services using redundant file storage.

During the first Management Service installation, the shared receive directory can be configured out of the box by passing SHARED_RECEIVE_DIRECTORY_LOCATION=<shared recv directory> option to runInstaller (setup.exe on Windows). Oracle recommends that this location be outside the Instance Home and Middleware Home locations.

If not configured during installation, the Shared Filesystem Loader can also be configured post-installation by running the following emctl command on every Management Service:

emctl config oms loader -shared yes -dir <shared recv directory>

Consider the following while configuring Shared Filesystem Loader on Windows.

• On Windows platforms, the Enterprise Manager install may configure the Management Service to run as a service using 'LocalSystem' account. This is a local account and will typically not have access to the network drive for the shared filesystem that requires domain authentication. To resolve this issue, configure the Management Service to run as a domain user as follows:

  1. Go to the Control Panel and then open the Services panel.

  2. Double click the appropriate service (Oracleoms11gProcessManager).

  3. Change the 'Log on as' user from the 'Local System Account' to This Account.

  4. Specify the domain user that has access to shared network drive.

  5. Click OK.

• Do not use local drive letters for mapped network shares while configuring the shared filesystem on Windows. Use UNC locations instead.

  emctl config oms loader -shared yes -dir \\\\<host>\\<share-name>\\<recv-dir>
  for example
  emctl config oms loader -shared yes -dir \\\\hostA\\vol1\\recv


  Note the use of double backslashes while specifying the directory location.

Configuring Software Library

Since software library location has to be accessed by all Management Services, considerations similar to shared fileystem loader directory apply here too. The configuration of software library is not covered during install. It needs to be configured post-install using the Enterprise Manager Console:

1. On the Enterprise Manager home page, click the Deployments tab.

2. Click the Provisioning subtab.

3. On the Provisioning page, click the Administration subtab.

4. In the Software Library Configuration section, click Add to set the Software Library Directory Location to a shared storage that can be accessed by any host running the Management Service.

Configuring a Load Balancer

This section describes the guidelines for setting up a Server Load Balancer (SLB) to balance the agent and browser traffic to multiple Management Services. This is a two step process:

1. Configure the SLB

2. Make needed changes on the Management Services

Installing a Fresh Additional Management Service According MAA Best Practices

Install the additional Management Service using the OUI installer. The additional Management Service will inherit most of the HA configuration from the first Management Service. Post installation, do the following step to complete the HA configuration:

• Update the SLB configuration by adding the additional Management Service to the different pools on the SLB. Setup monitors for the new Management Service.

Retrofitting MAA Best Practices on Existing Additional Management Service

Once you have the additional Management Service installed, use the following steps to copy over the configuration from the first Management Service.

1. Export the configuration from the first Management Service using emctl exportconfig oms -dir <location for the export file>

2. Copy over the exported file to the additional Management Service

3. Shutdown the additional Management Service

4. Import the exported configuration on the additional Management Service using emctl importconfig oms -file <full path of the export file>

5. Restart the additional Management Service

6. Setup EMCLI using emcli setup -url=https://slb.example.com/em -username sysman -password <sysman password> -nocertvalidate

7. Resecure the Management Agent that is installed with the additional Management Service to upload to SLB using emctl secure agent -emdWalletSrcUrl https://slb.example.com:<upload port>/em

8. Update the SLB configuration by adding the additional Management Service to the different pools on the SLB. Setup monitors for the new Management Service. Modify the ssl.conf file to set the Port directive to the SLB virtual port used for UI access.

Load Balancing Connections Between the Management Agent and the Management Service

Before you implement a plan to protect the flow of management data from the Management Agents to the Management Service, you should be aware of some key concepts.

Specifically, Management Agents do not maintain a persistent connection to the Management Service. When a Management Agent needs to upload collected monitoring data or an urgent target state change, the Management Agent establishes a connection to the Management Service. If the connection is not possible, such as in the case of a network failure or a host failure, the Management Agent retains the data and reattempts to send the information later.

To protect against the situation where a Management Service is unavailable, you can use a load balancer between the Management Agents and the Management Services.

However, if you decide to implement such a configuration, be sure to understand the flow of data when load balancing the upload of management data.

Figure 18-5 shows a typical scenario where a set of Management Agents upload their data to a load balancer, which redirects the data to one of two Management Service installations.

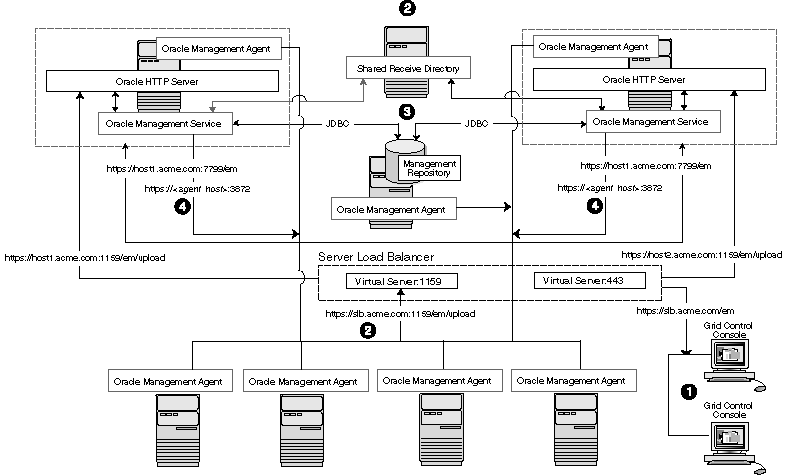

Figure 18-5 Load Balancing Between the Management Agent and the Management Service

Description of "Figure 18-5 Load Balancing Between the Management Agent and the Management Service"

In this example, only the upload of Management Agent data is routed through the load balancer. The Grid Control console still connects directly to a single Management Service by way of the unique Management Service upload URL. This abstraction allows Grid Control to present a consistent URL to both Management Agents and Grid Control consoles, regardless of the loss of any one Management Service component.

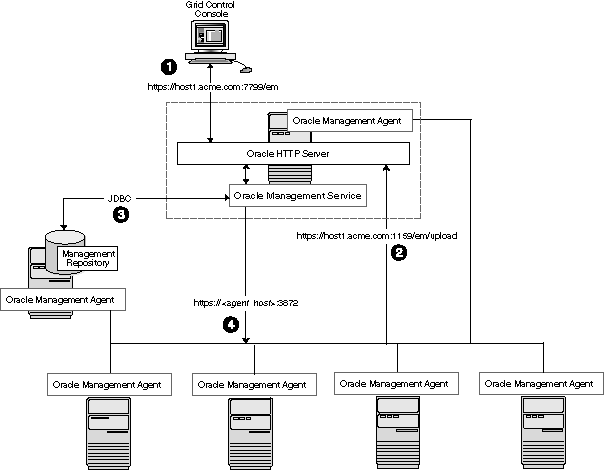

When you load balance the upload of Management Agent data to multiple Management Service installations, the data is directed along the following paths:

1. Each Management Agent uploads its data to a common load balancer URL. This URL is defined in the emd.properties file for each Management Agent. In other words, the Management Agents connect to a virtual service exposed by the load balancer. The load balancer routes the request to any one of a number of available servers that provide the requested service.

2. Each Management Service, upon receipt of data, stores it temporarily in a local file and acknowledges receipt to the Management Agent. The Management Services then coordinate among themselves and one of them loads the data in a background thread in the correct chronological order.

   Also, each Management Service communicates by way of JDBC with a common Management Repository, just as they do in the multiple Management Service configuration defined in Using Multiple Management Service Installations.

3. Each Management Service communicates directly with each Management Agent by way of HTTP, just as they do in the multiple Management Service configuration defined in Using Multiple Management Service Installations.

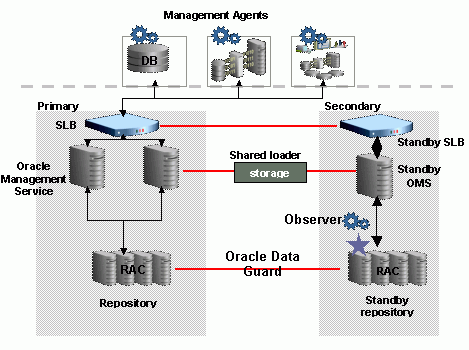

Prerequisites

The following prerequisites must be satisfied.

• The primary site must be configured as per Grid Control MAA guidelines described in previous sections. This includes Management Services fronted by an SLB and all Management Agents configured to upload to Management Services by the SLB.

• The standby site must be similar to the primary site in terms of hardware and network resources to ensure there is no loss of performance when failover happens.

• There must be sufficient network bandwidth between the primary and standby sites to handle peak redo data generation.

• Configure shared storage used for shared filesystem loader and software library to be replicated at the primary and standby site. In the event of a site outage, the contents of this shared storage must be made available on the standby site using hardware vendor disk level replication technologies.

• For complete redundancy in a disaster recovery environment, a second load balancer must be installed at the standby site. The secondary SLB must be configured in the same fashion as the primary. Some SLB vendors (such as F5 Networks) offer additional services that can be used to pass control of the Virtual IP presented by the SLB on the primary site to the SLB on the standby site in the event of a site outage. This can be used to facilitate automatic switching of Management Agent traffic from the primary site to the standby site.

Setup Standby Database

The starting point of this step is to have the primary site configured as per Grid Control MAA guidelines. The following steps lay down the procedure for setting up the standby Management Repository database.

1. Prepare Standby Management Repository hosts for Data Guard

   Install a Management Agent on each of the standby Management Repository hosts. Configure the Management Agents to upload by the SLB on the primary site. Install CRS and Database software on the standby Management Repository hosts. The version used must be the same as that on the primary site.

2. Prepare Primary Management Repository database for Data Guard

   If the primary Management Repository database is not already configured, enable archive log mode, setup flash recovery area and enable flashback database on the primary Management Repository database.

3. Create Physical Standby Database

   In Enterprise Manager, the standby Management Repository database must be physical standbys. Use the Enterprise Manager Console to setup a physical standby database in the standby environment. Note that Enterprise Manager Console does not support creating a standby RAC database. If the standby database has to be RAC, configure the standby database using a single instance and then use the Convert to RAC option from Enterprise Manager Console to convert the single instance standby database to RAC. Also, note that during single instance standby creation, the database files should be created on shared storage to facilitate conversion to RAC later.

   Note that the Convert to RAC option is available for Oracle Database releases 10.2.0.5, 11.1.0.7, and above. Oracle Database release 11.1.0.7 requires patch 8824966 for the Convert to RAC option to work.

4. Add Static Service to Listener

   To enable Data Guard to restart instances during the course of broker operations, a service with a specific name must be statically registered with the local listener of each instance. The value for the GLOBAL_DBNAME attribute must be set to a concatenation of <db_unique_name>_DGMGRL.<db_domain>. For example, in the LISTENER.ORA file:

   SID_LIST_LISTENER=(SID_LIST=(SID_DESC=(SID_NAME=sid_name)
        (GLOBAL_DBNAME=db_unique_name_DGMGRL.db_domain)
        (ORACLE_HOME=oracle_home)))


5. Enable Flashback Database on the Standby Database

6. Verify Physical Standby

   Verify the Physical Standby database through the Enterprise Manager Console. Click the Log Switch button on the Data Guard page to switch log and verify that it is received and applied to the standby database.

Setup Standby Management Service

Consider the following before installing the standby Management Services.

• Oracle recommends that this activity be done during a lean period or during a planned maintenance window. When new Management Services are installed on the standby site, they are initially configured to connect to the Management Repository database on the primary site. Some workload will be taken up by the new Management Service. This could result in temporary loss in performance if the standby site Management Services are located far away from the primary site Management Repository database. However there would be no data loss and the performance would recover once the standby Management Services are shutdown post configuration.

• The shared storage used for the shared filesystem loader and software library must be made available on the standby site using the same paths as the primary site.

Switchover

Switchover is a planned activity where operations are transferred from the Primary site to a Standby site. This is usually done for testing and validation of Disaster Recovery (DR) scenarios and for planned maintenance activities on the primary infrastructure. This section describes the steps to switchover to the standby site. The same procedure is applied to switchover in either direction.

Enterprise Manager Console cannot be used to perform switchover of the Management Repository database. Use the Data Guard Broker command line tool DGMGRL instead.

1. Prepare the Standby Database

   Verify that recovery is up-to-date. Using the Enterprise Manager Console, you can view the value of the ApplyLag column for the standby database in the Standby Databases section of the Data Guard Overview Page.

2. Shutdown the Primary Enterprise Manager Application Tier

   Shutdown all the Management Services in the primary site by running the following command on each Management Service:

   emctl stop oms -all

   Shutdown the Enterprise Manager jobs running in Management Repository database:

   - alter system set job_queue_processes=0;

3. Verify Shared Loader Directory / Software Library Availability

   Ensure all files from the primary site are available on the standby site.

4. Switchover to the Standby Database

   Use DGMGRL to perform a switchover to the standby database. The command can be run on the primary site or the standby site. The switchover command verifies the states of the primary database and the standby database, affects switchover of roles, restarts the old primary database, and sets it up as the new standby database.

   SWITCHOVER TO <standby database name>;

   Verify the post switchover states. To monitor a standby database completely, the user monitoring the database must have SYSDBA privileges. This privilege is required because the standby database is in a mounted-only state. A best practice is to ensure that the users monitoring the primary and standby databases have SYSDBA privileges for both databases.

   SHOW CONFIGURATION;
   SHOW DATABASE <primary database name>;
   SHOW DATABASE <standby database name>;


5. Startup the Enterprise Manager Application Tier

   Startup all the Management Services on the standby site:

   emctl start oms

   Startup the Enterprise Manager jobs running in Management Repository database on the standby site (the new primary database):

   - alter system set job_queue_processes=10;

6. Relocate Management Services and Management Repository target

   The Management Services and Management Repository target is monitored by a Management Agent on one of the Management Services on the primary site. To ensure that the target is monitored after switchover/failover, relocate the target to a Management Agent on the standby site by running the following command on one of the Management Service standby sites.

   emctl config emrep -agent <agent name> -conn_desc

7. Switchover to Standby SLB

   Make appropriate network changes to failover your primary SLB to standby SLB that is, all requests should now be served by the standby SLB without requiring any changes on the clients (browser and Management Agents).

This completes the switchover operation. Access and test the application to ensure that the site is fully operational and functionally equivalent to the primary site. Repeat the same procedure to switchover in the other direction.

Failover

A standby database can be converted to a primary database when the original primary database fails and there is no possibility of recovering the primary database in a timely manner. This is known as a manual failover. There may or may not be data loss depending upon whether your primary and target standby databases were synchronized at the time of the primary database failure.

This section describes the steps to failover to a standby database, recover the Enterprise Manager application state by resynchronizing the Management Repository database with all Management Agents, and enabling the original primary database as a standby using flashback database.

The word manual is used here to contrast this type of failover with a fast-start failover described later in Automatic Failover.

1. Verify Shared Loader Directory and Software Library Availability

   Ensure all files from the primary site are available on the standby site.

2. Failover to Standby Database

   Shutdown the database on the primary site. Use DGMGRL to connect to the standby database and execute the FAILOVER command:

   FAILOVER TO <standby database name>;

   Verify the post failover states:

   SHOW CONFIGURATION;
   SHOW DATABASE <primary database name>;
   SHOW DATABASE <standby database name>;


   Note that after the failover completes, the original primary database cannot be used as a standby database of the new primary database unless it is re-enabled.

3. Resync the New Primary Database with Management Agents

   Skip this step if you are running in Data Guard Maximum Protection or Maximum Availability level as there is no data loss on failover. However, if there is data loss, synchronize the new primary database with all Management Agents.

   On any one Management Service on the standby site, run the following command:

   emctl resync repos -full -name "<name for recovery action>"

   This command submits a resync job that would be executed on each Management Agent when the Management Services on the standby site are brought up.

   Repository resynchronization is a resource intensive operation. A well tuned Management Repository will help significantly to complete the operation as quickly as possible. Specifically if you are not routinely coalescing the IOTs/indexes associated with Advanced Queueing tables as described in My Oracle Support note 271855.1, running the procedure before resync will significantly help the resync operation to complete faster.

4. Startup the Enterprise Manager Application Tier

   Startup all the Management Services on the standby site by running the following command on each Management Service.

   emctl start oms

5. Relocate Management Services and Management Repository target

   The Management Services and Management Repository target is monitored by a Management Agent on one of the Management Services on the primary site. To ensure that target is monitored after switchover/failover, relocate the target to a Management Agent on the standby site by running the following command on one of the standby site Management Services.

   emctl config emrep -agent <agent name> -conn_desc

6. Switchover to Standby SLB

   Make appropriate network changes to failover your primary SLB to the standby SLB, that is, all requests should now be served by the standby SLB without requiring any changes on the clients (browser and Management Agents).

7. Establish Original Primary Database as Standby Database Using Flashback

   Once access to the failed site is restored and if you had flashback database enabled, you can reinstate the original primary database as a physical standby of the new primary database.

   • Shutdown all the Management Services in original primary site:

     emctl stop oms -all

   • Restart the original primary database in mount state:

     shutdown immediate;

     startup mount;

   • Reinstate the Original Primary Database

     Use DGMGRL to connect to the old primary database and execute the REINSTATE command

     REINSTATE DATABASE <old primary database name>;

   • The newly reinstated standby database will begin serving as standby database to the new primary database.

   • Verify the post reinstate states:

     SHOW CONFIGURATION;
     SHOW DATABASE <primary database name>;
     SHOW DATABASE <standby database name>;


8. Monitor and complete Repository Resynchronization

   Navigate to the Management Services and Repository Overview page of Grid Control Console. Under Related Links, click Repository Synchronization. This page shows the progress of the resynchronization operation on a per Management Agent basis. Monitor the progress.

   Operations that fail should be resubmitted manually from this page after fixing the error mentioned. Typically, communication related errors are caused by Management Agents being down and can be fixed by resubmitting the operation from this page after restarting the Management Agent.

   For Management Agents that cannot be started due to some reason, for example, old decommissioned Management Agents, the operation should be stopped manually from this page. Resynchronization is deemed complete when all the jobs have a completed or stopped status.

This completes the failover operation. Access and test the application to ensure that the site is fully operational and functionally equivalent to the primary site. Do a switchover procedure if the site operations have to be moved back to the original primary site.

Automatic Failover

This section details the steps to achieve complete automation of failure detection and failover procedure by utilizing Fast-Start Failover and Observer process. At a high level the process works like this:

• Fast-Start Failover (FSFO) determines that a failover is necessary and initiates a failover to the standby database automatically

• When the database failover has completed the DB_ROLE_CHANGE database event is fired

• The event causes a trigger to be fired which calls a script that configures and starts Enterprise Manager Application Tier

Perform the following steps:

1. Develop Enterprise Manager Application Tier Configuration and Startup Script

   Develop a script that will automate the Enterprise Manager Application configuration and startup process. See the sample shipped with Grid Control in the OH/sysman/ha directory. A sample script for the standby site is included here and should be customized as needed. Make sure ssh equivalence is setup so that remote shell scripts can be executed without password prompts. Place the script in a location accessible from the standby database host. Place a similar script on the primary site.

   #!/bin/sh
   # Script: /scratch/EMSBY_start.sh
   # Primary Site Hosts
   # Repos: earth, OMS: jupiter1, jupiter2
   # Standby Site Hosts
   # Repos: mars, # OMS: saturn1, saturn2
   LOGFILE="/net/mars/em/failover/em_failover.log"
   OMS_ORACLE_HOME="/scratch/OracleHomes/em/oms11"
   CENTRAL_AGENT="saturn1.example.com:3872"

   #log message
   echo "###############################" >> $LOGFILE
   date >> $LOGFILE
   echo $OMS_ORACLE_HOME >> $LOGFILE
   id >>  $LOGFILE 2>&1

   #startup all OMS
   #Add additional lines, one each per OMS in a multiple OMS setup
   ssh orausr@saturn1 "$OMS_ORACLE_HOME/bin/emctl start oms" >>  $LOGFILE 2>&1
   ssh orausr@saturn2 "$OMS_ORACLE_HOME/bin/emctl start oms" >>  $LOGFILE 2>&1

   #relocate Management Services and Repository target
   #to be done only once in a multiple OMS setup
   #allow time for OMS to be fully initialized
   ssh orausr@saturn1 "$OMS_ORACLE_HOME/bin/emctl config emrep -agent $CENTRAL_AGENT -conn_desc -sysman_pwd <password>" >> $LOGFILE 2>&1

   #always return 0 so that dbms scheduler job completes successfully
   exit 0


2. Automate Execution of Script by Trigger

   Create a database event "DB_ROLE_CHANGE" trigger, which fires after the database role changes from standby to primary. See the sample shipped with Grid Control in OH/sysman/ha directory.

   --
   --
   -- Sample database role change trigger
   --
   --
   CREATE OR REPLACE TRIGGER FAILOVER_EM
   AFTER DB_ROLE_CHANGE ON DATABASE
   DECLARE
       v_db_unique_name varchar2(30);
       v_db_role varchar2(30);
   BEGIN
       select upper(VALUE) into v_db_unique_name
       from v$parameter where NAME='db_unique_name';
       select database_role into v_db_role
       from v$database;

       if v_db_role = 'PRIMARY' then

         -- Submit job to Resync agents with repository
         -- Needed if running in maximum performance mode
         -- and there are chances of data-loss on failover
         -- Uncomment block below if required
         -- begin
         --  SYSMAN.setemusercontext('SYSMAN', SYSMAN.MGMT_USER.OP_SET_IDENTIFIER);
         --  SYSMAN.emd_maintenance.full_repository_resync('AUTO-FAILOVER to '||v_db_unique_name||' - '||systimestamp, true);
         --  SYSMAN.setemusercontext('SYSMAN', SYSMAN.MGMT_USER.OP_CLEAR_IDENTIFIER);
         -- end;

         -- Start the EM mid-tier
         dbms_scheduler.create_job(
             job_name=>'START_EM',
             job_type=>'executable',
             job_action=> '<location>' || v_db_unique_name|| '_start_oms.sh',
             enabled=>TRUE
         );
       end if;
   EXCEPTION
   WHEN OTHERS
   THEN
       SYSMAN.mgmt_log.log_error('LOGGING', SYSMAN.MGMT_GLOBAL.UNEXPECTED_ERR,
   SYSMAN.MGMT_GLOBAL.UNEXPECTED_ERR_M || 'EM_FAILOVER: ' ||SQLERRM);
   END;
   /



   Note:

   Based on your deployment, you might require additional steps to synchronize and automate the failover of SLB and shared storage used for loader receive directory and software library. These steps are vendor specific and beyond the scope of this document. One possibility is to invoke these steps from the Enterprise Manager Application Tier startup and configuration script.

3. Configure Fast-Start Failover and Observer

   Use the Fast-Start Failover configuration wizard in Enterprise Manager Console to enable FSFO and configure the Observer.

   This completes the setup of automatic failover.

Upload Delay for Monitoring Data

When assessing the health and availability of targets through the Grid Control console, information is slow to appear in the UI, especially after a Management Service outage. The state of a target in the Grid Control console may be delayed after a state change on the monitored host. Use the Management System page to gauge backlog for pending files to be processed.

Notification Delay of Target State Change

The model used by the Management Agent to assess the state of health for any particular monitored target is poll based. Management Agents immediately post a notification to the Management Service as soon as a change in state is detected. This infers that there is some potential delay for the Management Agent to actually detect a change in state.

Windows Specific Configuration Steps

On Windows environments, an additional step is required to copy over service and keys required by the Oracle software. Note that these steps are required if your clustering software does not provide a shared windows registry.

1. Using regedit on the first host, export each Oracle service from under HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services.

2. Using regedit on the first host, export HKEY_LOCAL_MACHINE\SOFTWARE\ORACLE.

3. Use regedit to import the files created in step 1 and 2 to the failover host.

Windows Specific Configuration Steps

On Windows environments, an additional step is required to copy over service and keys required by the Oracle software. Note that these steps are required if your clustering software does not provide a shared windows registry.

1. Using regedit on the first host, export each Oracle service from under HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services.

2. Using regedit on the first host, export HKEY_LOCAL_MACHINE\SOFTWARE\ORACLE.

3. Use regedit to import the files created in step 1 and 2 to the failover host.

Windows Specific Configuration Steps

On Windows environments, an additional step is required to copy over service and keys required by the Oracle software. Note that these steps are required if your clustering software does not provide a shared windows registry.

1. Using regedit on the first host, export each Oracle service from under HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services.

2. Using regedit on the first host, export HKEY_LOCAL_MACHINE\SOFTWARE\ORACLE.

3. Use regedit to import the files created in step 1 and 2 to the failover host.

Prerequisites

Prepare the Active/Passive environments as follows:

• Ensure the operating system clock is synchronized across all nodes of the cluster. (Consider using Network Time Protocol (NTP) or another network synchronization method.)

• Use the EM CLI RELOCATE_TARGETS command only with Enterprise Manager Release 10.2.0.5 (and higher) Management Agents.

Configuration Steps

The following steps show how to configure Enterprise Manager to support a CFC configuration using the existing Management Agents that are communicating with the OMS processes. The example that follows is based on a configuration with a two-node cluster that has one failover group. For additional information about targets running in CFC active/passive environments, see My Oracle Support note 406014.1.

1. Configure EM CLI

   To set up and configure target relocation, use the Oracle Enterprise Manager command-line interface (EM CLI). See the Oracle Enterprise Manager Command Line Interface manual and the Oracle Enterprise Manager Extensibility manual for information about EM CLI and Management Plug-Ins.

2. Install Management Agents

   Install the Management Agent on a local disk volume on each node in the cluster. Once installed, the Management Agents are visible in the Grid Control console.

3. Discover Targets

   After the Active / Passive targets have been configured, use the Management Agent discovery screen in the Grid Control console to add the targets (such as database, listener, application server, and so on). Perform the discovery on the active node, which is the node that is currently hosting the new target.

Relocation Script

#! /bin/ksh

#get the status of the targets

emcli get_targets -
targets="db1:oracle_database;listener_db1:oracle_listener" -noheader

  if [[ $? != 0 ]]; then exit 1; fi

# blackout the targets to stop false errors.  This blackout is set to expire in 30 minutes

emcli create_blackout -name="relocating active passive test targets" -
add_targets="db1:oracle_database;listener_db1:oracle_listener" -
reason="testing failover" -
schedule="frequency:once;duration:0:30"
  if [[ $? != 0 ]]; then exit 1; fi

# stop the listener target.  Have to go out to a OS script to use the 'lsnrctl set
current_listener' function

emcli execute_hostcmd -cmd="/bin/ksh" -osscript="FILE" -
input_file="FILE:/scratch/oraha/cfc_test/listener_stop.ksh" -
credential_set_name="HostCredsNormal" -
targets="host1.us.oracle.com:host"
  if [[ $? != 0 ]]; then exit 1; fi

# now, stop the database

emcli execute_sql -sql="shutdown abort" -
targets="db1:oracle_database" -
credential_set_name="DBCredsSYSDBA"
  if [[ $? != 0 ]]; then exit 1; fi

# relocate the targets to the new host

emcli relocate_targets -
src_agent=host1.us.oracle.com:3872 -
dest_agent=host2.us.oracle.com:3872 -
target_name=db1 -target_type=oracle_database -
copy_from_src -force=yes  -
changed_param=MachineName:host1vip.us.oracle.com
  if [[ $? != 0 ]]; then exit 1; fi

emcli relocate_targets -
src_agent=host1.us.oracle.com:3872 -
dest_agent=host2.us.oracle.com:3872 -
target_name=listener_db1 -target_type=oracle_listener -
copy_from_src -force=yes  -
changed_param=MachineName:host1vip.us.oracle.com
  if [[ $? != 0 ]]; then exit 1; fi

# Now, restart database and listener on the new host

emcli execute_hostcmd -cmd="/bin/ksh" -osscript="FILE" -
input_file="FILE:/scratch/oraha/cfc_test/listener_start.ksh" -
credential_set_name="HostCredsNormal" -
targets="host2.us.oracle.com:host"
  if [[ $? != 0 ]]; then exit 1; fi

emcli execute_sql -sql="startup" -
targets="db1:oracle_database" -
credential_set_name="DBCredsSYSDBA"
  if [[ $? != 0 ]]; then exit 1; fi

# Time to end the blackout and let the targets become visible

emcli stop_blackout -name="relocating active passive test targets"
  if [[ $? != 0 ]]; then exit 1; fi

# and finally, recheck the status of the targets

emcli get_targets -
targets="db1:oracle_database;listener_db1:oracle_listener" -noheader
  if [[ $? != 0 ]]; then exit 1; fi

Start Listener Script

#!/bin/ksh

export
ORACLE_HOME=/oradbshare/app/oracle/product/11.1.0/db
export PATH=$ORACLE_HOME/bin:$PATH

lsnrctl << EOF
set current_listener listener_db1
start
exit
EOF

Stop Listener Script

#!/bin/ksh
export
ORACLE_HOME=/oradbshare/app/oracle/product/11.1.0/db
export PATH=$ORACLE_HOME/bin:$PATH

lsnrctl << EOF
set current_listener listener_db1
stop
exit
EOF
