Why Choose a Ubiquitous Search Index?

This indexing technique lets you create indexes across multiple objects, add or remove data sources, and perform full-text or range-based searches within a single data source or across multiple sources using the same index. This simplifies the indexing tasks that previously (prior to Oracle Database 23ai) required you to create multiple individual indexes and manually combine various data sources using the MULTI_COLUMN_DATASTORE or USER_DATASTORE procedures along with materialized views. Previously, this also required additional methods, such as triggers, to ensure that the index remained synchronized with DML operations.

With a simplified set of DBMS_SEARCH APIs, you can perform ubiquitous searches across the database as follows:

• Create index:

  The DBMS_SEARCH.CREATE_INDEX API allows you to create a DBMS_SEARCH index.

  By default, this index is created with key indexing preferences, such as BASIC_WORDLIST to allow wildcard search and SEARCH_ON to allow both full-text and range-search queries. These indexes are asynchronously maintained in the background at predefined intervals, and thus you do not need to explicitly run the SYNC_INDEX and OPTIMIZE_INDEX operations on such indexes.

• Manage data sources:

  You can define which tables or views should be indexed by adding them as data sources into your index.

  The DBMS_SEARCH.ADD_SOURCE API allows you to automatically add one or more data sources (such as tables, views, or duality views) from different schemas to this index.

  The DBMS_SEARCH.REMOVE_SOURCE API allows you to remove a source and all its associated data from the index.

• View combined indexed data:

  The DBMS_SEARCH.GET_DOCUMENT API allows you to view a virtual document that is indexed, which displays metadata values as indexed for each row of all your data sources.

• Query multiple objects:

  The DBMS_SEARCH.FIND API allows you to retrieve a hitlist of all documents based on the specified filter conditions.

This index creates background jobs at predefined intervals to synchronize the DML changes and optimize the index using the AUTO_DAILY mode on all data sources. You do not need to explicitly run the SYNC_INDEX and OPTIMIZE_INDEX operations on this index.

Ubiquitous Search Index Creation Overview

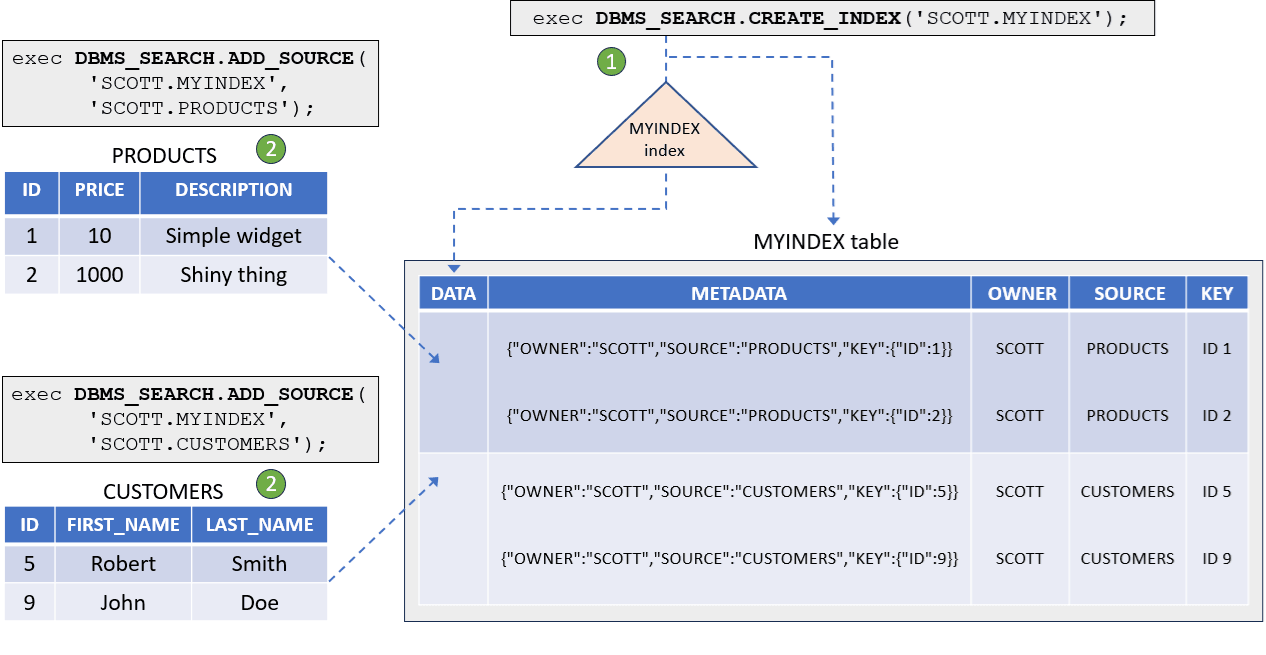

You create a DBMS_SEARCH index by simply specifying an index name and then adding various data sources to it. This is illustrated in the following diagram:

Description of the illustration ubiquitous_search_index.eps

1. The first command (DBMS_SEARCH.CREATE_INDEX procedure) creates an index table as [schema].index_name. A ubiquitous search index, also named [schema].index_name, is created on the DATA column of the index table. Note that the index table name matches your index name.

   Here, the schema owner name (SCOTT) is specified along with the index name (MYINDEX) as SCOTT.MYINDEX.

2. The second command (DBMS_SEARCH.ADD_SOURCE procedure) adds one or more data sources such as tables, views, or duality views from different schemas.

   Here, this procedure combines contents from all the columns of the PRODUCTS and CUSTOMERS tables in Scott's schema into the MYINDEX table.

The MYINDEX table contains the following columns:

• DATA (JSON datatype):

  This is an empty column, and is a placeholder for querying the DBMS_SEARCH index. You add your data sources into the DATA column. You can then run PL/SQL queries against this DATA column using the CONTAINS(), JSON_TEXTCONTAINS(), and JSON_EXISTS operators.

  The DATA column creates a JSON representation of the following form for each indexed row of the table or view that is added as a data source to this index:

  {"OWNER":
    {
     "TABLE_NAME":{"COLUMN1_NAME":"COLUMN1_VALUE",…}
    }
  }

  Note that the DATA column does not store actual data. Instead, the data resides in the original base tables. This index references your data source tables to create a virtual indexed JSON document on the fly. After the data is fetched and indexed, this column is effectively emptied to avoid duplication.

• METADATA (JSON datatype):

  The METADATA column helps the DBMS_SEARCH index to uniquely identify each row of the table or view that is indexed. After adding data sources to this index, you can see that the METADATA column stores a JSON representation of the following form for each indexed row of your data source:

  {
   "OWNER"  : "Table_Owner or View_Owner",
   "SOURCE" : "Table_Name or View_Name",
   "KEY"    : "{PrimaryKey_COLUMN_i" : PrimaryKey_VALUE_i}
  }

  OWNER specifies the owner of the table or view added as a data source into this index.

  SOURCE specifies the table name or view name of the data source.

  KEY is composed of all the primary key columns of the data source table. If the table does not have a primary key, then a ROWID is used instead. However, Oracle strongly recommends defining a primary key.

  As the diagram illustrates, the METADATA column stores corresponding JSON entries of the following form for each indexed row:

  For the PRODUCTS table:

  {"OWNER":"SCOTT","SOURCE":"PRODUCTS","KEY":{"ID":1}}
  {"OWNER":"SCOTT","SOURCE":"PRODUCTS","KEY":{"ID":2}}

  For the CUSTOMERS table:

  {"OWNER":"SCOTT","SOURCE":"CUSTOMERS","KEY":{"ID":5}}
  {"OWNER":"SCOTT","SOURCE":"CUSTOMERS","KEY":{"ID":9}}

  Note:

  The DBMS_SEARCH index stores all supported SQL data types (including Object Type columns) as JSON objects, except for the XMLTYPE and LONG data types. Therefore, you cannot add a table or view as data source if it has a column with the XMLTYPE or LONG data type.

• OWNER, SOURCE, KEY (VARCHAR2 datatype):

  Each JSON key of the METADATA column, that is, OWNER, SOURCE, and KEY, is also a separate virtual column in the MYINDEX table.

  Note that the MYINDEX table is partitioned by OWNER and SOURCE. When querying a particular data source, you can add a WHERE clause condition on the OWNER and SOURCE virtual columns to restrict your query search to a specific partition of that source using partition pruning.

  Note:

  All the data sources (such as table, view, or each table in the view definition) that are added to the DBMS_SEARCH index must include at least one Primary Key column. Each table that is part of a view source having a foreign key must also have the Foreign Key constraint, referencing the relevant primary keys defined on the table. If the source table does not have a primary key, then a ROWID is used instead.

Query Indexed Data

As discussed earlier, you can use the DBMS_SEARCH.GET_DOCUMENT procedure to view all the contents extracted from the original base tables by querying a virtual document. This document contains a JSON representation for each indexed row of a table or view that is added as data source to your index.

The syntax for DBMS_SEARCH.GET_DOCUMENT is:

SELECT DBMS_SEARCH.GET_DOCUMENT('[schema].index_name', METADATA)
 from [schema].index_name;

For example, using our earlier PRODUCTS and CUSTOMERS source tables scenario, the following statement returns a virtual document with combined metadata values as indexed in the MYINDEX index:

SELECT DBMS_SEARCH.GET_DOCUMENT('SCOTT.MYINDEX',METADATA)
  from SCOTT.MYINDEX;

DBMS_SEARCH.GET_DOCUMENT('SCOTT.MYINDEX', METADATA)
-----------------------------------------------------------------
{
  "SCOTT" :
  {
    "PRODUCTS" :
    {
      "ID"          : 1,
      "PRICE"       : 10,
      "DESCRIPTION" : "simple widget"
    }
  }
}
{
  "SCOTT" :
  {
    "PRODUCTS" :
    {
      "ID"          : 2,
      "PRICE"       : 2000,
      "DESCRIPTION" : "shiny thing"
    }
  }
}
{
  "SCOTT" :
  {
    "CUSTOMERS" :
    {
      "ID"         : 5,
      "FIRSTNAME"  : "Robert",
      "LASTNAME"   : "Smith"
    }
  }
}
{
  "SCOTT" :
  {
    "CUSTOMERS" :
    {
      "ID"         : 9,
      "FIRSTNAME"  : "John",
      "LASTNAME"   : "Doe"
    }
  }
}

You can now run queries against your index using the CONTAINS, JSON_TEXTCONTAINS, and JSON_EXISTS operators.

DBMS_SEARCH Dictionary Views

You can use the following dictionary views to examine your ubiquitous search indexes:

• USER_DBMS_SEARCH_INDEXES: To query information about the indexes that are created in a user's schema.

• ALL_DBMS_SEARCH_INDEXES: To query information about all existing indexes, corresponding to each index owner.

• USER_DBMS_SEARCH_INDEX_SOURCES: To query information about the data sources that are added to indexes, created in a user's schema.

• ALL_DBMS_SEARCH_INDEX_SOURCES: To query information about all existing data sources added to indexes, corresponding to each index owner.
