2 Things to Know

Enterprise Manager Grid Control offers complete lifecycle management solutions for Server and Software. This chapter describes the overall coverage of the provisioning and patching features, the coverage of Deployment Procedures used to orchestrate these tasks, and other aspects you must know before you begin using them.

Oracle strongly recommends you to read this chapter so that you understand the fundamentals and terms used in this context.

This chapter covers the following:

Understanding Provisioning and Patching Solutions

This section describes the following:

Provisioning

Provisioning Provisioning is the first phase of the software lifecycle that deals with installation and configuration of software, applications, or servers across different platforms, environments, and locations.

Enterprise Manager Grid Control offers provisioning Deployment Procedures that help you seamlessly deploy software across your enterprise configuration.


Patching

Patching Icon Patching is one of the phases of the software lifecycle that helps you maintain the software over a period of time and always keep it updated with the latest features offered by the software vendor. It is a process that deals with migrating from one version of the software product to another, higher, much-improved version.

Enterprise Manager Grid Control offers patching Deployment Procedures that help you seamlessly patch Oracle software across your enterprise configuration.


Oracle releases patches periodically to help you migrate to a newer version of the software product and reap the benefits of an improved version. These patches contain critical enhancements and bug fixes that make the product better and offer more value to your organization.

For example, for the Oracle Database 10g Release 1 (10.2.0.1) base release, Oracle has released patches that help you migrate to either Oracle Database 10g Release 2 (10.2.0.2), Oracle Database 10g Release 3 (10.2.0.3), or Oracle Database 10g Release 4 (10.2.0.4); the last one being the most recent patch.

Patching Versus Upgrading

Patching Icon As described in the previous section, Patching refers to the process of migrating from one version to another, newer version of the software product within a particular release.

For example, if Oracle Database 10g is the release, then Patching refers to migrating from Oracle Database 10g Release 1 (10.2.0.1) to Oracle Database 10g Release 2 (10.2.0.2). Here, Release 2 (10.2.0.1), Release 2 (10.2.0.2), and so on are different versions of the 10g release.

Upgrading Icon Upgrading refers to the process of upgrading from one release to another, newer release of the software product.

For example, if Oracle Database 10g is one release and Oracle Database 11g is another release, then Upgrading refers to upgrading Oracle Database 10g to Oracle Database 11g. Here, 10g, 11g, and so on are different releases of the Oracle Database product.


Patches

Patch and Patch Set Icon Patches are periodic software updates released by Oracle. They contain bugs fixes only, and they must be applied on the software product to maintain a bug-free and improved version of the software.

Patches can be one-off patches, interim patches, or critical patch updates (CPU). Some of these may even be requirement-specific and released only to a few customers.

Patches can be stored as generic components in Oracle Software Library. For information about Oracle Software Library, see Oracle Software Library.


Patch Sets

Patch and Patch Set Icon Patch Sets are new releases of the software product released by Oracle. They contain a collection of patches, important enhancements, and bug fixes. They are much larger in size, and are released for all customers. They must be applied on the base or existing release of the software product to maintain an up-to-date version of the software.

Patch Sets can be stored as generic components in Oracle Software Library. For information about Oracle Software Library, see Oracle Software Library.


Understanding Deployment Procedures

This section describes the following:

Deployment Procedures

Deployment Procedure Icon A Deployment Procedure is a procedure that contains a hierarchal sequence of provisioning or patching steps, where each step may contain a sequence of other steps. In other words, the workflow of all tasks that need to be performed for a particular lifecycle management activity is encapsulated in a Deployment Procedure.

For example, imagine a Deployment Procedure to be the "Coffee" button on the coffee vending machine. So, every time you need a cup of coffee, you press the "Coffee" button and it automatically adds the required ingredients and serves coffee through its nozzle.


You select a Deployment Procedure in the Enterprise Manager Grid Control console to perform a particular provisioning or patching task. The Deployment Procedure contains a set of predefined steps that run one by one automatically to complete the entire task.

Enterprise Manager Grid Control comes with a set of default Deployment Procedures that help you accomplish common provisioning and patching-related tasks. Each Deployment Procedure is unique, and is designed to perform a particular operation according to the source being provisioned or target being patched. For example, the Deployment Procedure to patch a single instance database differs from the one to patch an Oracle RAC environment or an application server.

Understandably, your provisioning and patching-related requirements may vary from one environment to another, or from a test installation to a production installation. You can use the default Deployment Procedures and customize them according to your needs.

Understanding Phases and Steps

Deployment Procedures comprise various phases and steps that run serially or in parallel to perform a particular provisioning or patching operation.

A phase contains steps or more phases. The different types of phases are:

  • Rolling Phase

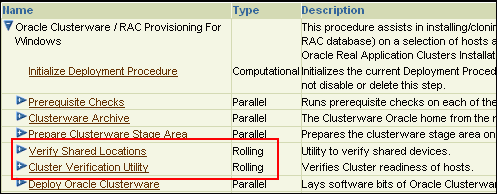

    Rolling phase is a phase where steps are run serially across targets.

    Rolling Phase
  • Parallel Phase

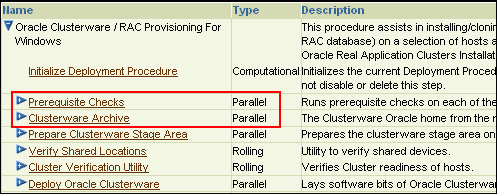

    Parallel phase is a phase where steps are run in parallel across targets.

    Parallel Phase

A step is an abstraction of a unit of work. For example, starting the database is a step. It is either part of a phase or independent. The different types of steps are:

  • Manual Step

    Manual step is a task that requires user interaction and cannot be automated. Typically, Enterprise Manager Grid Control displays the instructions that need to be performed by you. After you perform those operations, you proceed to the next step. For example, logging in to a system and updating the kernel parameter, rebooting a system, providing special privileges to the user, and so on.

    Manual Step
  • Computational Step

    Computational step is a task whose operations are performed within Enterprise Manager Grid Control and they do not require any user intervention. This step gathers additional information for running a procedure. This step cannot be manually inserted by you. For example, running an SQL query against a schema to gather more data for other steps to run, retrieving target properties from the repository and updating the runtime information, and so on.

    Computational Step
  • Action Step

    Action step is a task that performs some operations run on one or more targets. They must be enclosed within a phase. The Deployment Procedure maps the Action Step and target pair to a job in the Enterprise Manager Job System. The Deployment Procedure can schedule, submit, and run a job per Action Step per target. For example, running a script, applying a patch, upgrading an Oracle home, and so on.

    Also note that an Action Step is said to have completed successfully only when all its associated jobs have completed successfully. If a job fails, then the Action Step also fails. You may then manually restart the job in question or ignore and instruct the Deployment Procedure to proceed.

    The different types of Action Steps include:

    • Job

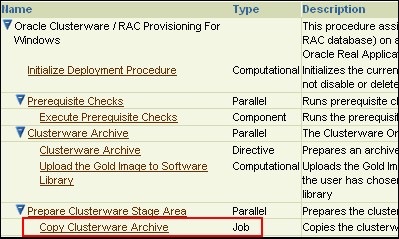

      Job Step is a special type of Action Step that executes a predefined job type on a target. This is used if you want to execute a job type as a part of a Deployment Procedure. You need to pass job parameters for a step.

      Surrounding text describes ttk_step_job.gif.
    • Directive

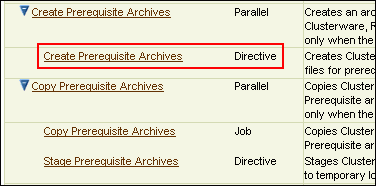

      Directive step is a special type of Action Step to deploy a directive alone. This is useful when users want to store their custom scripts in Oracle Software Library (Software Library) and reuse them in a Deployment Procedure.

      Directive
    • Component (Generic or Registered)

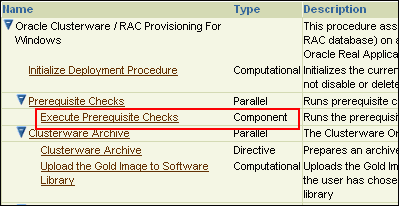

      Generic component step is a special type of Action Step to deploy a Software Library component and the associated Directive. Deployment Procedure Manager executes the directive with respect to the component. Components used for Generic Component Step generally have one directive associated with them. This association is done by selecting both the component and directive while creating the step. All directives that you associate with the component while uploading to the Software Library are ignored while running the step.

      Component
    • Host Command

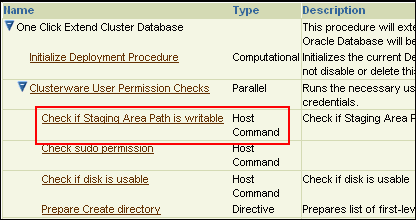

      Host Command Step is a special type of Action Step that encapsulates simple host commands. This step allows the user to enter a command line or a script (multiple commands) to be executed on the target host.

      Host Command

Activities Involved in Deployment Procedures

The activities involved in Deployment Procedures are design-time activities and run-time activities.

  • Design-time activities include creating components, directives, and images, and storing them in Oracle Software Library; and sometimes even customizing the default Deployment Procedures according to the needs of the organization.

  • Run-time activities include using these Deployment Procedures to actually provision or patch software, applications, or servers.

Users of Deployment Procedures

In a typical data center, the main users of Deployment Procedures are Designers (Lead Administrators) and Operators.

Lead Admin Icon Designers (Lead Administrators) are users who perform design-time activities described in Activities Involved in Deployment Procedures. Essentially, they are responsible for setting up the infrastructure for running Deployment Procedures.
Operator Icon Operators are users who perform run-time activities described in Activities Involved in Deployment Procedures. Essentially, they are responsible for running the Deployment Procedures to provision or patch a target.

Viewing Details of Deployment Procedures

To view the default configuration settings of a Deployment Procedure and the steps involved in it, follow these steps:

  1. In Grid Control, click Deployments.

  2. On the Deployments page, in the Deployment Procedure Manager section, click Deployment Procedures.

  3. On the Deployment Procedure Manager page, in the Procedures tab, from the table, select the Deployment Procedure for which you want to view details, and click View.

    Enterprise Manager Grid Control displays the View Procedure page that shows the default configuration settings and steps involved in the selected Deployment Procedure.

Understanding Provisioning Deployment Procedures

Enterprise Manager Grid Control offers the following Deployment Procedures for provisioning:

Target Type Provisioning Deployment Procedure Chapter No.
Oracle Database (Standalone)
  • Oracle Database Provisioning
  • Oracle Database Replay Client Provisioning

  • Oracle Grid Infrastructure Provisioning for Standalone Servers

Oracle RAC Database
  • Oracle Grid Infrastructure / RAC Provisioning
  • One Click Extend Cluster Database

  • Delete/Scale down Oracle Real Application Clusters

Middleware
  • Application Server Deployment (myJ2EE) 10.1.2.0.2
  • Application Server Deployment 10.1.3

  • Application Server Deployment 10.1.3.xSOA

  • Oracle BPEL Process Manager Provisioning

  • Oracle Service Bus Provisioning

  • SOA Artifacts Provisioning

  • SOA Composites Provisioning

Virtualization
  • Live Migration
  • Virtual Machine Cloning

  • Edit Virtual Machine

  • Create Shared Disk

  • Virtual Machine Provisioning Using PXE

  • Virtual Machine Provisioning Using ISO

  • Virtual Machine Provisioning Using Template

  • Import ISO Image

  • Import Template

  • Import Guest Virtual Machine (V2V)

  • Import Template From V2V

  • Import Template From P2V

  • Discover Shared Disks

Chapter 12

Note:

The Cloning Wizard is no longer supported in Enterprise Manager 11g Grid Control Release 1 (11.1.0.1.0).

Understanding Patching Deployment Procedures

This section describes the following:

Patching Deployment Procedures

The following are the patching Deployment Procedures offered by Enterprise Manager Grid Control.

Target Type Patching Deployment Procedure Chapter No.
Operating System Patching
  • Patch Windows hosts
  • Patch Linux hosts

  • Patch Solaris hosts

Oracle Database (Standalone) Patch Oracle Database Chapter 22
Oracle ASM Patch Standalone Oracle ASM Chapter 25
Oracle RAC
  • Patch Oracle RAC Database - Rolling
  • Patch Oracle RAC Database - All Nodes

Chapter 23
Oracle Clusterware
  • Patch Oracle Clusterware - Rolling
  • Patch Oracle Clusterware - All Nodes

Chapter 24
Middleware Patch Application Server Chapter 26

Note:

  • The Patch Oracle Database Deployment Procedure supports 9.2.0.8 or higher database patch sets. For patch sets that are lower than 9.2.0.8, you cannot use Deployment Procedures, and therefore, you will have to manually apply them.

  • By default, for the "Patch Oracle Database" Deployment Procedure, the Stop CSS Daemon and Start CSS Daemon steps are disabled. However, if you are applying a 10.1.0.5 database patch set, then before running the Deployment Procedure, enable the Stop CSS Daemon and Start CSS Daemon steps, and set the Run Privilege setting of these two steps to Normal.

Understanding Patching Modes

Using Deployment Procedures, you can apply a patch or patch set in either online mode or offline mode.

Online Patching Icon Online Patching Mode helps you if the host that runs Enterprise Manager Grid Control has an Internet connection to connect to My Oracle Support.

Using Enterprise Manager Grid Control, you can schedule a job that will run periodically and connect to My Oracle Support, check for the latest patches and patch sets, and automatically download them. This relieves you of the manual effort involved in searching the latest patches and patch sets, and downloading them whenever they are available.

Offline Patching Icon Offline Patching Mode helps you if the host that runs Enterprise Manager Grid Control does not have an Internet connection to connect to My Oracle Support.

In this case, you must manually download the patch and patch sets from My Oracle Support using another host that has an Internet connection. Using Enterprise Manager Grid Control, you can manually upload these patches and patch sets to the Patch Cache so that they can be applied later.


Understanding Patching Methodologies

For Oracle RAC Database and Oracle Clusterware, you can patch all instances of the cluster either in a rolling or parallel mode. The parallel manner is called All Nodes in Enterprise Manager Grid Control.

  • Rolling mode refers to the patching methodology where the nodes of the cluster are patched individually, that is, one by one.

    For example, if you are patching a clusterware that has five nodes, then the first node is shut down, patched, and restarted, and then the process is rolled over to the next node until all the nodes are patched successfully.

    This methodology is best suited for the following use cases:

    • When you are applying one-off patches that support this methodology.

      Note:

      Although most one-off patches support this methodology, there are some one-off patches that can be applied only using the All Nodes methodology. You can identify the supported methodology while downloading the one-off patches from My Oracle Support.
    • When you want to maintain high availability of your targets, so when one node is being patched, the other nodes are available for service.

    Note:

    You cannot use this methodology to patch shared Oracle homes. If you want to patch a shared Oracle home, then use the All Nodes methodology.
  • All Nodes (or parallel) mode refers to the patching methodology where all the nodes are patched at a time, collectively. In this methodology, all the nodes are shut down and the patch is applied on all of them at the same time.

    This methodology is best suited for the following use cases:

    • When you are applying patch sets, or one-off patches that support this methodology.

    • When you want to patch a shared Oracle home clusterware. In case of a shared Oracle home, all the nodes are shut down, but the patch is applied only on one of the nodes.

      For example, if you are patching a shared Oracle home clusterware that has five nodes, the patch and the scripts within it are run only once on the shared Oracle home, and the other nodes are ignored or skipped. This saves time as the patching operation is performed only once, that is, only on the shared Oracle home, and not on all the nodes.

    Note:

    Patching of shared Oracle homes is supported only for Oracle Clusterware 10g Release 2 (10.2.0.1) or higher.

Understanding Oracle Software Library

This section describes the following:

Oracle Software Library

Software Library Icon Oracle Software Library (Software Library) is a repository that stores certified software images (for example, Oracle Database, operating system, Oracle Real Application Clusters, third party software, and so on) and other related entities. These can then be automatically mass-deployed to provision software, software updates, and servers using Enterprise Manger Grid Control in a reliable and repeatable manner. These provisioning operations, which are unattended and can be scheduled, lead to substantial cost savings.

For example, imagine Software Library to be the container inside the coffee vending machine that has smaller compartments for storing milk, coffee powder, and sugar. So, before you press the "Coffee" button, you would ideally stock milk, coffee powder, and sugar in those smaller compartments of the container inside the vending machine.


The Software Library is part of and within Enterprise Manager Grid Control. It is not a separate, add-on product that needs to be installed separately. You can use the Enterprise Manager Grid Control console to access the Software Library and create components, images, directives, and store metadata and binary content.

For information about components, images, and directives, see Components, Directives, and Images, Network Templates, Hardware Templates, Disk Layouts, respectively.

For information about setting up the Software Library, see Setting Up Oracle Software Library. For information about using other options offered by the Software Library, see Appendix C, "Using Oracle Software Library".

Components

Components Icon Components are entities in the Software Library that represent the primary building blocks for Deployment Procedures. A component can represent operating system software, Oracle software, or any third-party software and applications.

For example, imagine a Component to be an ingredient, such as milk, coffee powder, or sugar stored in the container inside a coffee vending machine. Without these, the vending machine cannot prepare a cup of coffee.


Components are individually maintained within the Software Library, and you can associate versions, states, and maturity levels with each component. They may also be combined with other components as needed, to specify the complete software configuration or image that is provisioned on target hosts.

Directives

Directive Icon Directives are entities in the Software Library that represent a set of instructions to be performed. These are constructs used to associate scripts with software components and images. These scripts contain directions on how to interpret and process the contents of a particular component or an image.

For example, imagine a Directive to be the program that runs inside the coffee vending machine to automate the process of preparing coffee. The program essentially instructs the vending machine to add the ingredients one by one, and then serve the drink through its nozzle.


Directives encapsulate the script, the command line used to invoke the script, and the script configuration properties. They capture everything required for invoking the script on a machine during a provisioning operation.

Directives are usually categorized based on the provisioning life cycle phases they are targeted for, or the actions they perform. Imagine Directives as set of executable instructions that run from a supported shell (for example, borne-again, Perl, Python), programming language (for example, Java), or execution framework or interpreter (such as “make” or “ant”).

Directives are contained within a file stored in the Oracle Software Library and referenced from the software components that employ them. Versions, states and maturity levels can be associated with each directive.

Images, Network Templates, Hardware Templates, Disk Layouts

Image Icon Images are entities that represent a collection of components along with the necessary directives that create a deployable configuration for a single or set of target hosts.

Network Templates, Hardware Templates, and Disk Layouts are used to define the network, hardware, and disk layout configuration of the target hosts, respectively.

For example, imagine an Image to be a cappuccino flavored drink readily available in a paper carton. In this case, you do not prepare the coffee; the drink already contains milk, cappuccino coffee powder, and sugar, and it's all mixed and readily available for consumption.


Images are stored in the Oracle Software Library and versions, states, and maturity levels can be associated with them.

Assignments

Assignment is the activity to select an image and provision them on hardware servers. Assignments allow specifying properties (such as image properties, file system, root password, network profiles, port, IP address, etc.) that will be used during the provisioning of hardware servers. Assignments also allow for setting of advanced parameters like NTP, NIS, NFS and kernel parameters.

Understanding Linux Patching

Linux Host Patching is a feature in Enterprise Manager Grid Control that helps in keeping the machines in an enterprise updated with security fixes and critical bug fixes, especially in a data centre or a server farm. This feature support in Enterprise Manager Grid Control enables you to:

The following are concepts related to Linux patching:

Linux Host A host target in Enterprise Manager Grid Control that is running the Linux operating system.
Linux Patching Group A set of managed Linux hosts that are associated with a common RPM repository. Every group is configured with an update schedule according to which, a recurring job is triggered that will update the hosts of the group with the associated RPM repositories.
Unbreakable Linux Network (ULN) Unbreakable Linux Network (ULN) is a Web site hosted by Oracle to provide updates for Oracle Enterprise Linux.
ULN Channel A channel is a grouping of RPM packages on the ULN network. For example, el4_latest channel contains all packages for OEL 4.
RPM Repository RPM repository is a directory that contains RPM packages and their metadata (extracted by running yum-arch and createrepo). The RPM repository is accessible via http or ftp. An RPM repository can be organized to contain packages from multiple channels.

For example, /var/www/html/yum/Enterprise/EL4/latest might contain packages from the el4_latest channel on ULN.

Custom Channel A channel that is created by the user to store a set of custom RPM packages. Custom channels can be added to the RPM repository.
Configuration Channel A channel that is created by the user to store a set of Linux configuration files. Configuration channels can be used in the Linux patching application GUI to deploy configuration files on Linux hosts.

Understanding SOA Artifacts Provisioning

SOA artifacts deployment proecdures support provisioning of SOA composites, Web Service policies, and policy and credential stores.

Following are some of the terms used in SOA artifacts provisioning:

SOA Composite

A SOA composite is a logical construct. Its components can run in a single process on a single computer or be distributed across multiple processes on multiple computers. A complete application might be constructed from just one composite, or it could combine several different composites. The components making up each composite might all use the same technology, or they might be built using different technologies.

SOA Infra Domain

The SOA Infrastructure domain is a WebLogic domain that contains soa-infra binaries, The SOA Infrastructure includes a set of service engines (BPEL process, human workflow, decision service, and Oracle mediator) that execute the business logic of their respective components within the SOA composite application (for example, a BPEL process).

Web Services

A Web service is a program that can be accessed remotely using different XML-based languages. What this program can do (that is, the functionality it implements) is described in a standard XML vocabulary called Web Services Description Language (WSDL). For example, a banking Web service may implement functions to check an account, print a statement, and deposit and withdraw funds. These functions are described in a WSDL file that any consumer can invoke to access the banking Web service. As a result, a consumer does not have to know anything more about a Web service than the WSDL file that describes what it can do.

A Web service consumer (such as, a desktop application or a Java Platform, Enterprise Edition client such as a portlet) invokes a Web service by submitting a request in the form of an XML document to a Web service provider. The Web service provider processes the request and returns the result to the Web service consumer in an XML document.

WS Policies and Assertions

Policies describe the capabilities and requirements of a Web service such as whether and how a message must be secured, whether and how a message must be delivered reliably, and so on. Policies belong to one of the following categories: Reliable Messaging, Management, WS-Addressing, Security, and MTOM.

Policies are comprised of one or more assertions. A policy assertion is the smallest unit of a policy that performs a specific action. Policy assertions are executed on the request message and the response message, and the same set of assertions is executed on both types of messages. The assertions are executed in the order in which they appear in the policy. Assertions, like policies, belong to one of the following categories: Reliable Messaging, Management, WS-Addressing, Security, and MTOM.

Policy Stores

The Policy Store is a repository of system and application-specific policies and roles. Application roles can include enterprise users and groups specific to the application (such as administrative roles). A policy can use any of these groups or users as principals. A policy store can be file-based or LDAP-based. A file-based policy store is an XML file, and this store is the out-of-the-box policy store provider. An LDAP-based policy store can use either of the following LDAP servers: Oracle Internet Directory or Oracle Virtual Directory (with a local store adapter, or LSA).

Credential Stores

A Credential Store is a repository of security data (credentials) that certify the authority of users, Java components, and system components. A credential can hold user name and password combinations, tickets, or public key certificates. This data is used during authentication, when principals are populated in subjects, and, further, during authorization, when determining what actions the subject can perform.

Understanding Virtualization Management Provisioning

Virtualization management involves the monitoring, administration, and maintenance of virtual servers and guest virtual machines in your enterprise. Oracle provides the customer increased value by extending Enterprise Manager capabilities to monitor virtualized entities alongside the physical infrastructure and perform complete lifecycle management of virtual servers and software running on them.

This section describes the following:

Terms Used in Virtualization

The following describes the terms used in virtualization:

Oracle VM

Oracle VM is server virtualization software. Installing Oracle VM on a bare metal box allows for the creation of multiple guest virtual machines on it. Just like Oracle databases and Oracle Fusion Middleware, Oracle VM is available for download on Oracle Technology Network (OTN).

Virtual Server

Virtual Server is a generic term used to describe a physical box running virtualization software (hypervisor) on it. A new virtual server can be provisioned by installing Oracle VM server software on a bare metal physical box. "Virtual Server" is a target type in Enterprise Manager that represents the Oracle VM targets.

Every Oracle VM server can perform one or more of the functions described below:

  • Master Server

    The Master Server is the core of the server pool operations. It acts as the contact point of the server pool to the outside world, and also as the dispatcher to other servers within the server pool. The load balancing is implemented by the Master Server. For example, when you start a guest virtual machine, the Master Server will choose a Guest VM Server with the maximum resources available to run the guest virtual machine. There can be only one Master Server in a server pool. The state of a virtual server pool is equivalent to the state of the master virtual server.

  • Utility Server

    The Utility Server is responsible for I/O intensive operations such as copying or moving files. Its function focuses on the creation and removal operations of guest virtual machines, virtual servers, and server pools. There can be one or more Utility Servers in a server pool. When there are several Utility Servers, Server Pool Master chooses the Utility Server with the maximum CPU resources available to conduct the task.

  • Guest VM Server

    The primary function of the Guest VM Server is to run guest virtual machines, thus acting as a hypervisor. There can be one or more Guest VM Servers in a server pool. When there are several Guest VM Servers, Master Server chooses the Guest VM Server with the maxhmum resources available (including memory and CPU) to start and run the virtual machine.

Monitoring Server

The monitoring server monitors the virtual server remotely. Multiple virtual servers are monitored by one agent. Enterprise Manager agent must not be installed on virtual servers. The Monitoring Server agent (Enterprise Manager agent that monitors Oracle VM servers) should be upgraded to version 10.2.0.5.0.

Virtual Server Pool

A Server Pool is a logical grouping of one or more virtual servers that share common storage. A virtual server can belong to only one virtual server pool at a time. Guest virtual machines and resources are also associated with server pools. Oracle VM Server Pool is an aggregate target type in Enterprise Manager to represent the server pool of Oracle VM Servers.

When the Oracle VM Server Pool is created, the user is asked to provide the details of the Master Server for that pool. By default, this Oracle VM Server also performs the functions of the Utility Server and Guest VM Server.

The user can later change the Utility Server and Guest VM Server functions using the Edit Virtual Server action.

Guest Virtual Machine

Guest Virtual Machine (also known as Guest VM) is the container running on top of a virtual server. Multiple guest virtual machines can run on a single virtual server. Guest virtual machines can be created from Oracle VM templates. Oracle VM templates provide pre-installed and pre-configured software images to deploy a fully configured software stack. Oracle VM templates can be downloaded from OTN at the following location:

http://www.oracle.com/technology/products/vm/templates.html

A guest virtual machine monitored by an Enterprise Manager agent is treated like any other Host target. This type of guest virtual machine is referred to as a "Managed Guest VM".

A guest virtual machine that is not monitored by any Enterprise Manager agent is referred to as an "Unmanaged Guest VM". Only limited monitoring and configuration information is available for such a guest virtual machine.

Privileges Required for Administrative and Provisioning Operations

Table 2-1 lists the privileges required to perform administrative and provisioning tasks on server pools, virtual servers, and guest virtual machines.

Table 2-1 Privileges for Provisioning and Administrative Operations in Virtualization Central

Task Privileges

Create Virtual Server Pool

Add any Target system privilege

Remove Virtual Server Pool

Full privilege on the Server Pool Target and the member Virtual Servers

Manage Virtual Server Pool

Operator privilege on the Server Pool Target

Create Guest Virtual Machine

Operator privilege on the Server Pool Target

Discover Guest Virtual Machine

Operator privilege on the Server Pool Target

Clear Operation Error (Virtual Server Pool)

The Privilege check depends on the operation that has failed.

  • If Create Virtual Server Pool action has failed:

    User must be the job owner or must have Super Administrator privileges

  • If Remove Virtual Server Pool has failed:

    User must have Full privilege on the Server Pool Target and the member Virtual Servers as well

  • If Stop Virtual Server / Reboot Virtual Server operation on the Master Virtual Server had failed:

    User must have Operator privilege on the Master Virtual Server and the Server Pool Target

Convert P2V

Operator privilege on the Server Pool Target

Convert V2V

Operator privilege on the Server Pool Target

Register Virtual Server

Add any Target system privilege

De-register Virtual Server

Full privilege on the Virtual Server and the Server Pool Target

Edit Virtual Server

Operator privilege on the Virtual Server and the Server Pool Target

Enable Server Maintenance Mode

Operator privilege on the Virtual Server

Remove Server Maintenance Mode

Operator privilege on the Virtual Server

Live Migrate All Guest Virtual Machine

Operator privilege on the source Virtual Server and the Server Pool Target.

Since the destination virtual server gets selected automatically and may be any virtual server in the Server Pool, Operator privilege on all member virtual servers of the Server Pool Target is essential.

If preferred servers are set for the guest virtual machine, you will need Operator privilege on preferred virtual servers only.

Stop Virtual Server

Operator privilege on the Virtual Server and the Server Pool Target

Reboot Virtual Server

Operator privilege on the Virtual Server and the Server Pool Target

Clear Operation Error (Virtual Server)

Privilege check depends on the operation that has failed.

  • If Register Virtual Server has failed:

    User must be the job owner or must have Super Administrator privileges

  • If De-register Virtual Server has failed:

    User must have Full privilege on the Server Pool Target and the Virtual Servers as well

  • If Stop Virtual Server/Reboot Virtual Server operation has failed:

    User must have Operator privilege on the Master Virtual Server and the Server Pool Target

Live Migrate Guest Virtual Machine

Operator privilege on the source Virtual Server and the Server Pool Target.

Since the destination virtual server gets selected automatically and may be any virtual server in the Server Pool, Operator privilege on all member virtual servers of the Server Pool Target is needed.

If preferred servers are set for the guest virtual machine, you will need Operator privilege on preferred virtual servers only.

Clone Guest Virtual Machine

Operator privilege on the Server Pool Target

Save Guest Virtual Machine as Template

Operator privilege on the Server Pool Target

Edit Guest Virtual Machine

Operator privilege on the Virtual Server and the Server Pool Target.

An Edit Guest VM action may be performed on a Halted guest virtual machine as well. In this case privileges will be checked only on the Server Pool Target.

Update Preferred Server List

Operator privilege on the Virtual Server and the Server Pool Target.

If the preferred server selection is set to Automatic, the guest virtual machine may come up on any virtual server within the server pool hence, you must have Operator privilege on all the members virtual servers in the server pool Target.

If the preferred server selection is set to Manual, you must have Operator privilege on the specified list of member virtual servers.

Delete Guest Virtual Machine

Full privilege on the Server Pool Target

Stop Guest Virtual Machine

Operator privilege on the Virtual Server and the Server Pool Target

Start Guest Virtual Machine

Operator privilege on the Server Pool Target.

If the preferred server selection for that guest virtual machine is set to Automatic, the guest virtual machine may come up on any virtual server within the server pool. Hence, you must have Operator privilege on all the members virtual servers in the Server pool Target.

If the preferred servers for that guest virtual machine is set to Manual, you must have Operator privilege on the specified list of member virtual servers.

Reboot Guest Virtual Machine

Operator privilege on the Virtual Server and the Server Pool Target.

Pause Guest Virtual Machine

Operator privilege on the Virtual Server and the Server Pool Target

Un-pause Guest Virtual Machine

Operator privilege on the Virtual Server and the Server Pool Target

Suspend Guest Virtual Machine

Operator privilege on the Virtual Server and the Server Pool Target

Resume Guest Virtual Machine

Operator privilege on the Server Pool Target.

If the preferred server selection for that guest virtual machine is set to Automatic, the guest virtual machine can come up on any virtual server within the server pool. Hence, you must have Operator privilege on all the members virtual servers in the Server pool Target.

If the preferred server selection for that guest virtual machine is set to Manual, you must have Operator privilege on the specified list of member virtual servers.

VNC Console

Operator privilege on the Virtual Server and the Server Pool Target

Clear Operation Error (Guest Virtual Machines)

Privilege check depends on the operation that has failed.

  • If Delete Guest VM has failed:

    User must have Full privilege the Server Pool Target

  • If Start/Stop/Reboot/Pause/Un-pause/Suspend/Resume Guest VM has failed:

    User must have Operator privilege the Server Pool Target

  • If Create/Clone/Migrate/Edit/Save has failed:

    User must have Operator privilege the Server Pool Target

View Virtual Server/Guest Virtual Machine

View privilege on the Virtual Server Pool.

If the User has Full/ Operator/View privilege on the Virtual Server Pool then the user gets View privileges on all the member Virtual Server targets automatically.


Understanding Bare Metal Provisioning

Proliferation of low cost servers in our data centers has brought in a fresh set of management challenges. The well-acknowledged problems include the difficulty in managing consistency and compatibility across operating system and software deployments, server drifts and security vulnerabilities that lead to lack of compliance, difficulty in deploying software, difficulty in provisioning new servers with variety of configurations and applications, high cost of operation and difficulty in adapting to changes in workload of the environment. These lead to system administrators and DBAs spending significant amount of their time in software and server provisioning operations.

Oracle's answer to the Software and Server Management challenge is its Bare Metal Provisioning Application, which is a part of Provisioning Pack (available at http://www.oracle.com/technology/products/oem/mgmt_solutions/provisioning.html) of the Enterprise Manager Grid Control and Oracle Management Pack for Linux (available at http://www.oracle.com/technology/products/oem/omp_linux.html). Bare Metal Provisioning Application addresses the data center, server farm challenge to provision software and servers quickly, efficiently, and make them operational.

Bare Metal Provisioning Application provides server lifecycle management capabilities that enable one to build manage and optimize their server infrastructure. The application provides an automated, repeatable and reliable solution that:

The application uses standardized PXE (Pre Boot Execution environment) booting process for provisioning both bare-metal and live servers. It provides a role based User Interface, for easily creating Gold Images and initiating automated, unattended installs.

Overview of the Bare Metal Provisioning Environment

The deployment environment in the data center needs to be setup in a certain manner in order to support the provisioning application. Besides the Oracle Management Server (OMS) which hosts Enterprise Manager and Provisioning Application, the following need to be setup and configured before using the provisioning application.

Software Library and its Entities

For information about Software Library and its entities, see Oracle Software Library.

Boot Server

One of the key requirements of application is the ability of the hardware server to boot up over the network (rather than from a local boot device). A boot server must be set up so that it is able to service the requests from the designated hardware servers in order for them to boot over the network. Boot server must be an Enterprise Manager target and should be able to receive the BOOTP and TFTP (Trivial File Transfer Protocol) requests over the network from the hardware server. Refer to Setting Up Boot Server for setting up a boot server with DHCP/TFTP combination. Also refer to section Configuring Boot Server. It is also recommended that the users read about DHCP, PXE, and Redhat Kickstart technology before going through the boot server setup. Refer to Appendix G, "PXE Booting and Kickstart Technology" for a detailed discussion on PXE.

Stage Server

During provisioning of an image on hardware servers, the required binaries and files are first transferred to a stage server. This is known as Staging phase and is responsible for preparing images to be installed over the network, and exposing installable or executable software elements over the network to the target hardware server being provisioned.

The Provisioning application requires at least one stage server on which all the activities related to staging can be performed. From the networking perspective, you are advised to keep the stage server as close to the target machines as possible. It will help in bringing down the installation time drastically, by reducing the time taken to transfer image data from the stage server to the hardware servers. If you have multiple hardware server groups residing at physically different locations, it would be better to have one stage server for each of these locations. Stage server should again be an Enterprise Manager target. Refer to section Setting Up Stage Server for setting up a stage server. Also refer to section Configuring Stage Server.

Reference Host

A Reference Host (also called a gold machine) is the machine that the Provisioning application uses as a reference to create the Linux operating system component. The Provisioning application picks up the list of RPMs (along with their versions) installed on the reference host, and fetches those RPMs from a RPM repository to create an Linux OS component that represents the operating system installed on the reference host. The reference host must be an Enterprise Manager target.

RPM Repository

The Provisioning application picks up the RPMs for the operating system from the RPM repository. At least one repository needs to be setup for use by the Provisioning application. Refer to section Setting Up the RPM Repository for setting up a RPM repository. Also refer to section Configuring RPM Repository.

Overview of the Bare Metal Provisioning Process

The provisioning process consists of the following two high-level tasks:

Setting Up Provisioning Environment ( Setting Up Infrastructure for Bare Metal Provisioning):

  • Setting up Boot/DHCP server and Stage server, setting up RPM repository and Software Library

  • Configuring above entities in Enterprise Manager

Provisioning Linux using Bare Metal Provisioning Application ( Provisioning Bare Metal Boxes):

  • Creating Linux "Default Image" by creating an image and associating the image with a particular network subnet or MAC address

  • Staging the image on the Stage server

  • Powering up the bare metal machine on the network to begin the PXE-based OS boot and install process

Setting Up Provisioning Environment

The user needs to perform a one-time activity of setting up a Boot server, Stage server, and RPM repository that are required by the provisioning application. Once this infrastructure is set up, it can be used repeatedly for provisioning Linux on several bare metal machines. See Setting Up Infrastructure for Bare Metal Provisioning for more information.

Provisioning Linux Using Bare Metal Provisioning Application

The following sections outline the steps to provision Linux. See Chapter 11, "Provisioning Linux Operating System" for more information.

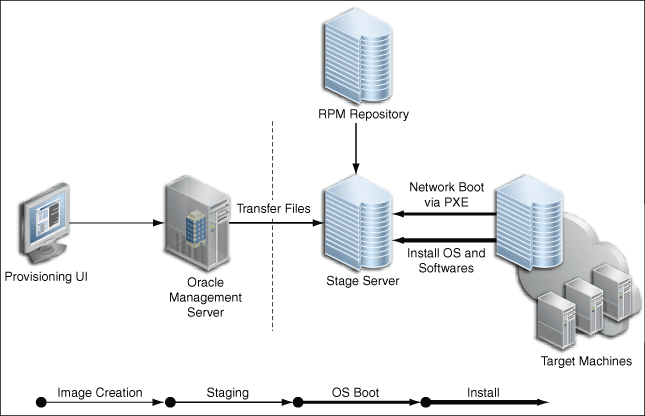

Figure 2-1 User Flow for Creating Deployable Images for Hardware Servers

Creating Deployable Images
Creating Linux Default Image

Enterprise Manager allows the user to create a Linux "Default Image" from Linux installation on a reference machine. The default image consists of an OS binary component along with directives required to stage and provision the image. Once an image is created, it can be associated with a subnet prefix or a set of MAC addresses. Doing this ensures that the image gets provisioned on bare metal machines in the specified subnet or having specified MAC address. See Chapter 11, "Creating a Default Image" for more information.

Staging the Image on the Stage Server

The user is required to stage the contents of the image, namely the binaries associated with the components, directives and other templates, on the stage server. This caches the image in the staging area in the subnet for improved performance and prepares the image to be provisioned. See Chapter 11, "Staging the Default Image" for more information.

Powering up the Bare Metal Machine on the Network to Begin the PXE-based OS Boot and Install Process

Once the image is staged, it is ready to be provisioned on bare metal machines that are powered on in the subnet. When a bare metal machine is connected to the subnet, the Bare Metal Provisioning Application discovers the machine and boots it over the network using the PXE protocol. It then installs the operating system and the Enterprise Manager management agent on the server. Installing the agent makes the server a managed target in the Enterprise Manager console. See Chapter 11, "Ready to Go" for more information.

Figure 2-2 explains the sequence in the PXE process:

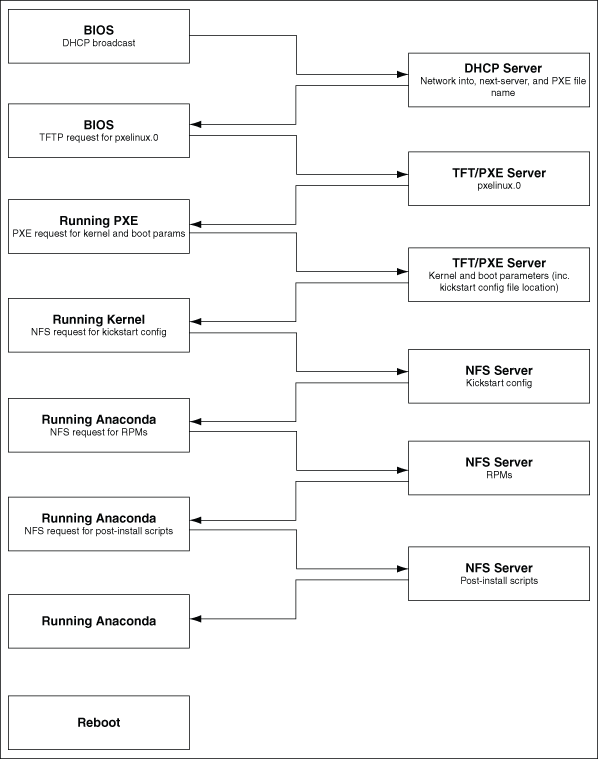

Figure 2-2 PXE Process

PXE Process

See Chapter G, "PXE Booting and Kickstart Technology" for a description of the PXE boot process.

Understanding My Oracle Support

My Oracle Support provides you with personalized, proactive, and collaborative support. You can benefit from integrated service request work flows and detailed, dynamic system configuration data, shared with Oracle Support in real-time to improve system stability and resolve problems more easily. Using the configuration manager, you can share configuration information with Oracle Support. When this is done, Oracle Support engineers can view your configuration information through My Oracle Support to assist with diagnosing and resolving system-critical issues and help you to avoid problems before they occur. My Oracle Support functionality is fully integrated with Oracle Enterprise Manager.

This section describes the following:

Patches and Updates

From the Enterprise Manager Grid Control console, the Patches and Updates tab allows you to view and download recommended patches and updates for your Oracle products.

Patch Plans

A patch plan is a collection of patches which you might want to consider applying as a group. A patch plan could equate to a maintenance window (you can set a date for the plan), could contain patches for a single target, a collection of similarly configured targets (the same key patches applied to all of your databases, for example), or all of the patches for a system or group of systems, such as all patches for the current month for production databases.You can include a patch for any target in a plan. The plan also supports validation of the patches against your environment by looking for conflicts with existing (installed) patches, missing pre-requisites for patches you want to install (a candidate patch), as well as looking for conflicts between patches within the plan itself. Currently, the validation process works for products such as Oracle Database, Fusion Middleware and Enterprise Manager. More Oracle products will be added in future release.Patch plan is only available when using the configuration manager.

Patch Recommendations

Patch recommendations are proactive notifications of potential system issues and recommendations that help you improve system performance and avert outages. My Oracle Support's Patch Recommendations region provides a portal to all recommended patches. From the bar graph, you can drill down to a list of recommended patch, view details about those patches, download the patches, or add them to a patch plan. A bar graph summarizes the number of issues found (one issue = one recommendation for one target). The Recommended Patches region appears by default on the Patch and Updates page and can also be added to the Dashboard. You can edit this region to filter its contents.

Validation

When My Oracle Support validates a plan, it checks for conflicts using patch information from Oracle, the inventory of patches on your system (gathered by the configuration manager) and information from the candidate patches. In addition to checking patch merge conflicts between patches listed in the plan, the validation function also checks for conflicts between the listed plan patches and patches that have already been applied.

Not all Oracle products and platforms support validation, but those that do (such as the Oracle Database, Oracle Fusion Middleware , and Oracle Enterprise Manager) will help you later when you want to deploy the patches. The validation process will catch a variety of problems which are easier to resolve now then when you are trying to deploy the patches. It catches patches that conflict and require a replacement patch (also referred to as a Merged Patch, or MLR), missing pre-requisites, patches not intended for a specific release, and other conditions that would cause problems at installation time.

Merge Requests

When patching complex heterogeneous IT environments, enevitably conflicts may arise between specific patch versions. Conflicts occur when two or more patches attempt to update/change the same files. Because individual files cannot be applied as one-offs, they must be "merged" together in a single patch containing all changes/updates to the file(s) in question so that the file(s) are updated only once with all the fixes.

Merge Requests are also known as Merge Label Requests (MLRs).

Understanding Other Related Concepts

This section describes the following:

Provisioning Archive (PAR) Files

Surrounding text describes ttk_par.gif. Provisioning Archive files or PAR files contain Deployment Procedures and/or components and directives from the Software Library. These are default Deployment Procedures offered by Enterprise Manager Grid Control. When you import or export Deployment Procedures using the default PARDeploy utility, you technically import or export PAR files.

For information on PARDeploy utility and how you can use it to import or export PAR files, see Appendix B, "Using emctl partool Utility".


Oracle Patch Advisories

Patch Advisory Icon Oracle Patch Advisories describe critical software patches for Oracle products. To help ensure a secure and reliable configuration, all relevant and current critical Oracle patches must be applied.

To promote critical patch application, Enterprise Manager Grid Control performs an assessment of vulnerabilities by examining the host configurations collected for your enterprise to determine the Oracle homes that require one or more critical patches to be installed.


Staging Area

Staging Area Staging Area is a temporary location on the target host where the generic component from the Software Library or the reference installation used for cloning will be staged for a short period, and then extracted and used for deployment.

The generic component or the reference installation may be in the form of a ZIP file. After it is placed in the staging area, once the Deployment Procedure is ready for deployment, the contents of the ZIP file are extracted and then deployed. You must always ensure that the staging area has write permission so that the Deployment Procedure can stage the ZIP file.


Support for SUDO, PAM, and Privilege Delegation

All the Deployment Procedures offered by Enterprise Manager Grid Control require administrator privileges to run. While most steps within a Deployment Procedure can be run as a normal user, there are some steps that require special permissions and privileges, and unless you provide the administrator's credentials, you cannot proceed with the deployment.

Under such circumstances, you can do one of the following:

  • Customize the Deployment Procedure to disable the steps that require special privileges, run the other steps as a normal user, and have the administrator run the disabled steps later.

  • Customize the Deployment Procedure to use authentication utilities for running some steps within the Deployment Procedure with the privileges of another user. The authentication utilities supported by Enterprise Manager Grid Control are SUDO, PowerBroker, and Privilege Delegation.

For information on how you can customize Deployment Procedures and how Privilege Delegation scores over other two utilities, see Chapter 30, "Using Privilege Delegation".

Tracking the Status of Deployment Procedures

After you have submitted a Deployment Procedure, you can track its status from the Procedure Completion Status page. To access this page, follow these steps:

  1. In Grid Control, click Deployments.

  2. On the Deployments page, from the Deployment Procedure Manager section, click Procedure Completion Status.

  3. On the Deployment Procedure Manager page, click the Procedure Completion Status tab.

  4. On the Procedure Completion Status page, you can view the status of the Deployment Procedures.

    Table 2-2 Deployment Procedure Status

    Status Description

    Scheduled

    implies that the Deployment Procedure is scheduled to be executed at the date and time that you have specified.

    Running

    implies that the Deployment Procedure is currently being executed.

    Action Required

    Implies that the Deployment Procedure has stopped running as user interaction is required.

    Suspended

    Implies that the Deployment Procedure has been temporarily stopped from execution. You can resume from the paused step later.

    Failed

    Implies that the Deployment Procedure has failed and cannot execute the further steps. You can also ignore the error and proceed further.

    Completed

    Implies that the Deployment Procedure has successfully completed its execution.

    Stopped

    Implies that the Deployment Procedure has been permanently stopped from execution by the user.

    Saved

    Implies that the Deployment Procedure has not been given for execution, and has been saved.

    Completed with Errors

    Indicates that the Deployment Procedure completed, but completed with errors possibly because some of the steps within it might have failed and the steps might have the Skip target/Continue on Error flag enabled.


    You can also perform the following actions:

    1. Search for a particular Deployment Procedure using the Search section. Click Search to refine your search criteria.

    2. View the status of all Deployment Procedures. You can also manually refresh the page and view the updated status by clicking Refresh.

    3. View real-time status information based on a particular refresh period such as 30 seconds, 1 minute, or 5 minutes.

    4. Stop or suspend any Deployment Procedure by selecting them and clicking Stop or Suspend, respectively. You can resume at any point by clicking Resume or Retry.

    5. Delete any Deployment Procedure by selecting them and clicking Delete.
